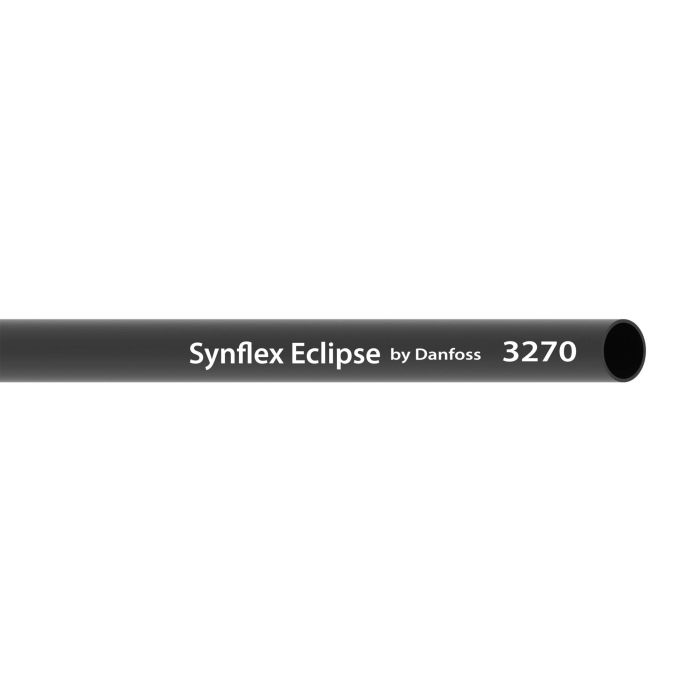

main product photo

Nylon Air Brake Tubing, Black, 0.75 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

Ask A Question

Description & Features

Designed for truck and trailer air brake systems auxiliary air systems and harness assemblies this air brake tubing showcases premium abrasion resistance and superior flexibility. Engineered with a 100% polyamide construction and reinforced with synthetic fiber it meets SAE J844 J1131 J2494-3 DOT-FMVSS 106 performance standards.

With a 0.75-inch outer diameter 0.09-inch wall thickness and an inner diameter of 0.57 inches this tubing promises excellent flow performance and reliable impulse cycle life of 125 000 cycles. The minimum bend radius is 3 inches suitable for versatile installations. This black tubing is non-conductive and UV stabilized ensuring durability across a temperature range from -65deg;F to 200deg;F.

The polyester cover material combined with easy burr-free cutting makes assembly straightforward. Enhanced abrasion resistance sets it apart from rubber and Nylon 11 alternatives. Ink jet lay lines add clear identification and the tubing remains thermoformable for custom applications.

Product Model Label: Tubing

Agency Listings: Meets the performance of SAE J844 J1131 J2494-3 DOT-FMVSS 106

Supplier Part Number: 3270-1210-0250

Specifications

Abrasion Resistance
28
Application
Truck air brake systems, trailer air brake systems, auxiliary air systems, formed tubes, formed and straight air brake harness assemblies.
Color
Black
Conductivity
13552
Construction
Multi Braid
Cover Material
Polyester
Dash Size
-12
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
FT
I.D.
0.57 in
Impulse Cycle Life
125000 cycle
Lay Line Style
Ink Jet
Minimum Bend Radius
3
Minimum Bend Radius
3
Minimum Working Temperature
-40
O.D.
0.75 in
Package Qty.
250
Reinforcement Material
Synthetic fiber
Supplier Part Number
3270-1210-0250
Tube Material
Nylon
Type
B
Wall Thickness
0.09
Alternate Part Numbers
Alternate Part Number C1MJ59
Product Weight
0.26 lbs

Related Documents

Similar Products

Model Number Type O.D. Wall Thickness I.D. Minimum Bend Radius Color Burst Pressure Package Qty. Price Action
Nylon Air Brake Tubing, Black, 0.38 Inch OD, 0.06 Inch Wall Thickness, 100 Feet Per Pack

3270-0610-0100 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Black

100

Nylon Air Brake Tubing, Black, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0610-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Black

500

Nylon Air Brake Tubing, Red, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0612-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Red

500

Nylon Air Brake Tubing, Orange, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0613-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Orange

500

Nylon Air Brake Tubing, Yellow, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0614-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Yellow

500

Nylon Air Brake Tubing, Green, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0615-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Green

500

Nylon Air Brake Tubing, Blue, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0616-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Blue

500

Nylon Air Brake Tubing, Black, 0.50 Inch OD, 0.06 Inch Wall Thickness, 100 Feet Per Pack

3270-0810-0100 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Black

100

Nylon Air Brake Tubing, Black, 0.50 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0810-0500 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Black

500

Nylon Air Brake Tubing, Black, 0.50 Inch OD, 0.06 Inch Wall Thickness, 1500 Feet Per Pack

3270-08104 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Black

1500

Nylon Air Brake Tubing, Red, 0.50 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0812-0500 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Red

500

Nylon Air Brake Tubing, Red, 0.50 Inch OD, 0.06 Inch Wall Thickness, 1500 Feet Per Pack

3270-08124 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Red

1500

Nylon Air Brake Tubing, Green, 0.50 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0815-0500 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Green

500

Nylon Air Brake Tubing, Black, 0.63 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1010-0250 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Black

250

Nylon Air Brake Tubing, Black, 0.63 Inch OD, 0.09 Inch Wall Thickness, 750 Feet Per Pack

3270-10103 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Black

750

Nylon Air Brake Tubing, Red, 0.63 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1012-0250 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Red

250

Nylon Air Brake Tubing, Orange, 0.63 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1013-0250 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Orange

250

Nylon Air Brake Tubing, Green, 0.63 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1015-0250 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Green

250

Nylon Air Brake Tubing, Blue, 0.63 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1016-0250 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Blue

250

Nylon Air Brake Tubing, Black, 0.75 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1210-0250 Eclipse / Solstice Air Brake Tubing

B

0.75 in

0.09

0.57 in

3

Black

250

Nylon Air Brake Tubing, Green, 0.75 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1215-0250 Eclipse / Solstice Air Brake Tubing

B

0.75 in

0.09

0.57 in

3

Green

250

Nylon Air Brake Tubing, Black, 0.13 Inch OD, 0.02 Inch Wall Thickness, 1000 Feet Per Pack

4245-0220-1000 Eclipse / Solstice Air Brake Tubing

A

0.125 in

0.02

0.08 in

1.25

Black

1000

Nylon Air Brake Tubing, Black, 0.31 Inch OD, 0.04 Inch Wall Thickness, 500 Feet Per Pack

4245-0520-0500 Eclipse / Solstice Air Brake Tubing

A

0.313 in

0.04

0.23 in

1.13

Black

500

Nylon Air Brake Tubing, Black, 0.25 Inch OD, 0.04 Inch Wall Thickness, 100 Feet Per Pack

4247-0410-0100 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Black

100

Nylon Air Brake Tubing, Black, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0410-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Black

1000

Nylon Air Brake Tubing, Red, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0412-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Red

1000

Nylon Air Brake Tubing, Orange, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0413-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Orange

1000

Nylon Air Brake Tubing, Yellow, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0414-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Yellow

1000

Nylon Air Brake Tubing, Green, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0415-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Green

1000

Nylon Air Brake Tubing, Blue, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0416-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Blue

1000

Product Questions & Answers (1)

Question by: Floyd M on Dec 15, 2025, 2:02 PM
What kind of applications is this tubing good for?
Answer by: Customer Support on Dec 17, 2025, 6:04 AM
It's really made for truck and trailer air brake systems. You can also use it for auxiliary air systems and making up air brake harness assemblies, both straight and formed.
