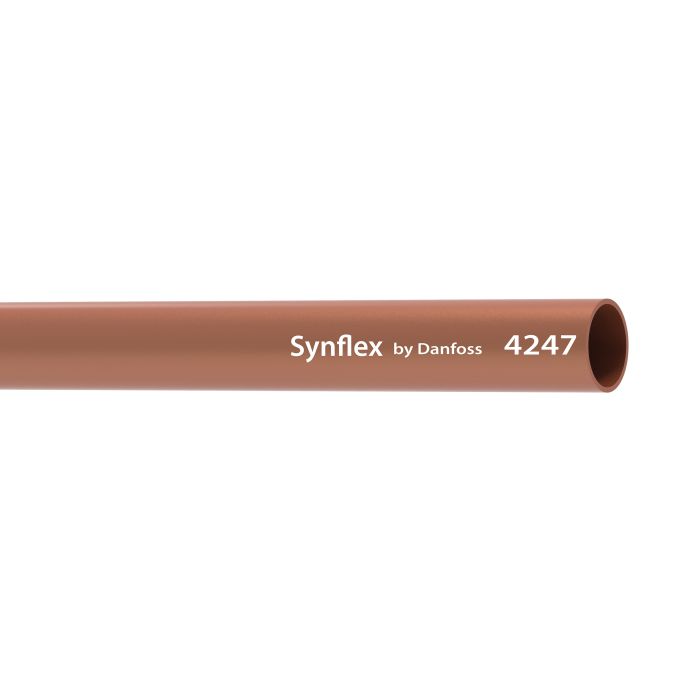

Nylon Air Brake Tubing, Red, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

Ask A Question

Description & Features

Synflex by Danfoss / Eaton Solstice Airbrake Hose and Tubing offers superior abrasion resistance and easy cutting for assembly ensuring reliability in truck and trailer air brake systems. Constructed from 100% polyamide with a UV-stabilized cover this tubing provides excellent performance under harsh conditions.

With a 0.25 inch outer diameter and 0.04 inch wall thickness it is designed to meet the performance of SAE J844 J1131 and J2494-3 DOT-FMVSS 106 standards. The non-conductive nature and enhanced flexibility over other nylon tubing make it a reliable choice for various auxiliary air systems and harness assemblies.

The red color coding aids in easy identification and the minimum bend radius of 1 inch ensures adaptability in tight spaces. The temperature range of -65deg;F to 200deg;F allows for versatile usage in diverse environments.

**Supplier Part Number:** 4247-0412-1000

Specifications

Abrasion Resistance
28
Application
Truck air brake systems, trailer air brake systems, auxiliary air systems, formed tubes, formed and straight air brake harness assemblies.
Color
Red
Conductivity
13552
Construction
Extruded
Cover Material
UV Stabilized
Dash Size
-4
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
I.D.
0.17 in
Lay Line Style
Ink Jet
Minimum Bend Radius
1
Minimum Bend Radius
1
Minimum Working Temperature
-40
O.D.
0.25 in
Package Qty.
1000
Reinforcement Material
None
Supplier Part Number
4247-0412-1000
Tube Material
Polyamide Alloy
Type
A
Wall Thickness
0.04
Alternate Part Numbers
Alternate Part Number C1MJ92
Product Weight
0.03 lbs

Related Documents

Similar Products

Model Number Type O.D. Wall Thickness I.D. Minimum Bend Radius Color Burst Pressure Package Qty. Price Action
Nylon Air Brake Tubing, Black, 0.38 Inch OD, 0.06 Inch Wall Thickness, 100 Feet Per Pack

3270-0610-0100 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Black

100

Nylon Air Brake Tubing, Black, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0610-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Black

500

Nylon Air Brake Tubing, Red, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0612-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Red

500

Nylon Air Brake Tubing, Orange, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0613-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Orange

500

Nylon Air Brake Tubing, Yellow, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0614-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Yellow

500

Nylon Air Brake Tubing, Green, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0615-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Green

500

Nylon Air Brake Tubing, Blue, 0.38 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0616-0500 Eclipse / Solstice Air Brake Tubing

B

0.375 in

0.06

0.25 in

1.5

Blue

500

Nylon Air Brake Tubing, Black, 0.50 Inch OD, 0.06 Inch Wall Thickness, 100 Feet Per Pack

3270-0810-0100 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Black

100

Nylon Air Brake Tubing, Black, 0.50 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0810-0500 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Black

500

Nylon Air Brake Tubing, Black, 0.50 Inch OD, 0.06 Inch Wall Thickness, 1500 Feet Per Pack

3270-08104 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Black

1500

Nylon Air Brake Tubing, Red, 0.50 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0812-0500 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Red

500

Nylon Air Brake Tubing, Red, 0.50 Inch OD, 0.06 Inch Wall Thickness, 1500 Feet Per Pack

3270-08124 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Red

1500

Nylon Air Brake Tubing, Green, 0.50 Inch OD, 0.06 Inch Wall Thickness, 500 Feet Per Pack

3270-0815-0500 Eclipse / Solstice Air Brake Tubing

B

0.5 in

0.06

0.38 in

2

Green

500

Nylon Air Brake Tubing, Black, 0.63 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1010-0250 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Black

250

Nylon Air Brake Tubing, Black, 0.63 Inch OD, 0.09 Inch Wall Thickness, 750 Feet Per Pack

3270-10103 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Black

750

Nylon Air Brake Tubing, Red, 0.63 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1012-0250 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Red

250

Nylon Air Brake Tubing, Orange, 0.63 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1013-0250 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Orange

250

Nylon Air Brake Tubing, Green, 0.63 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1015-0250 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Green

250

Nylon Air Brake Tubing, Blue, 0.63 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1016-0250 Eclipse / Solstice Air Brake Tubing

B

0.625 in

0.09

0.44 in

2.5

Blue

250

Nylon Air Brake Tubing, Black, 0.75 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1210-0250 Eclipse / Solstice Air Brake Tubing

B

0.75 in

0.09

0.57 in

3

Black

250

Nylon Air Brake Tubing, Green, 0.75 Inch OD, 0.09 Inch Wall Thickness, 250 Feet Per Pack

3270-1215-0250 Eclipse / Solstice Air Brake Tubing

B

0.75 in

0.09

0.57 in

3

Green

250

Nylon Air Brake Tubing, Black, 0.13 Inch OD, 0.02 Inch Wall Thickness, 1000 Feet Per Pack

4245-0220-1000 Eclipse / Solstice Air Brake Tubing

A

0.125 in

0.02

0.08 in

1.25

Black

1000

Nylon Air Brake Tubing, Black, 0.31 Inch OD, 0.04 Inch Wall Thickness, 500 Feet Per Pack

4245-0520-0500 Eclipse / Solstice Air Brake Tubing

A

0.313 in

0.04

0.23 in

1.13

Black

500

Nylon Air Brake Tubing, Black, 0.25 Inch OD, 0.04 Inch Wall Thickness, 100 Feet Per Pack

4247-0410-0100 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Black

100

Nylon Air Brake Tubing, Black, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0410-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Black

1000

Nylon Air Brake Tubing, Red, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0412-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Red

1000

Nylon Air Brake Tubing, Orange, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0413-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Orange

1000

Nylon Air Brake Tubing, Yellow, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0414-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Yellow

1000

Nylon Air Brake Tubing, Green, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0415-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Green

1000

Nylon Air Brake Tubing, Blue, 0.25 Inch OD, 0.04 Inch Wall Thickness, 1000 Feet Per Pack

4247-0416-1000 Eclipse / Solstice Air Brake Tubing

A

0.25 in

0.04

0.17 in

1

Blue

1000

Product Questions & Answers (2)

Question by: Bobby S on Nov 8, 2025, 9:43 AM
got a tight spot behind the cab, how tight can i bend this red nylon line without kinking it
Answer by: Customer Support on Nov 10, 2025, 6:00 AM
For routing in close quarters, the minimum bend radius on this tubing is 1 inch. Staying at or above that radius helps it lay in clean without stressing the line in a tight run.
Question by: Diane M on Sep 22, 2025, 9:09 AM
What's the temperature range this tubing can handle?
Answer by: Customer Support on Sep 24, 2025, 6:47 AM
It's rated to handle temperatures from -65°F up to 200°F.
