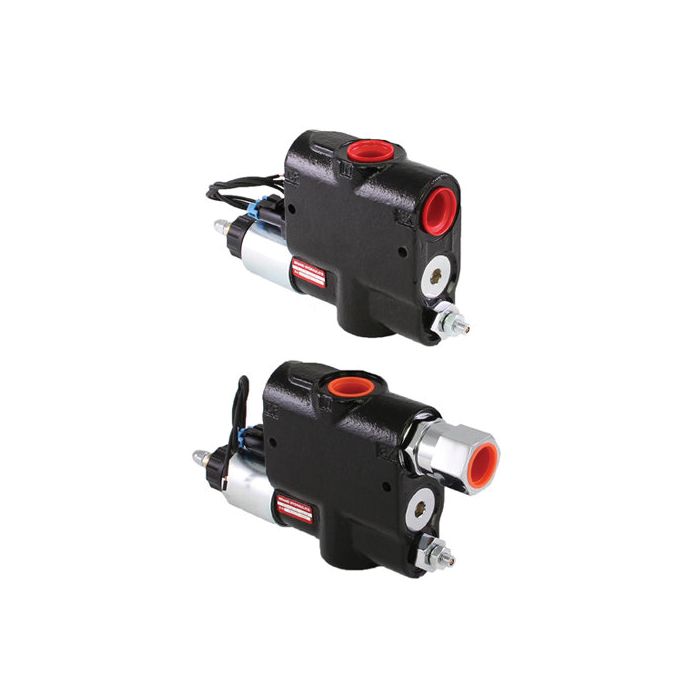

EFC Series Electronically Adjustable Pressure Compensated Proportional Flow Control, SAE -12 Ports, 0 - 30 GPM Flow Range

The EFC Series offers electronically adjustable pressure-compensated flow control designed for optimal performance in fluid control applications. It features SAE -12 ports and supports a flow range of 0 - 30 GPM.

Constructed with a durable ductile cast iron body and heat-treated steel spools it ensures long-term reliability. Equipped with standard 12VDC coils it also includes optional 24VDC coils for varied requirements. The unit's diamond-honed spool bore enables a consistent spool fit minimizing leakage.

Each model is rigorously tested for parameters including shutoff linearity max flow crack open and pressure compensation. The 3-port design allows for pressure-compensated flow from both the CF and EX ports with an optional 2-port configuration for single-port flow. Featuring manual override and optional high lift relief it offers flexible control options.

With a pressure rating of 3000 PSI and internal leakage of 50 ml/minute @ 1000 PSI on the EX port it ensures efficient operation. The product's pulse frequency ranges from 90 to 115 Hz and response times vary based on dash pot size.

MPN: C1MH20

Supplier Part Number: EFC12-30-12R20
