DANFOSS / EATON UL21 LPG Transfer

Description & Features

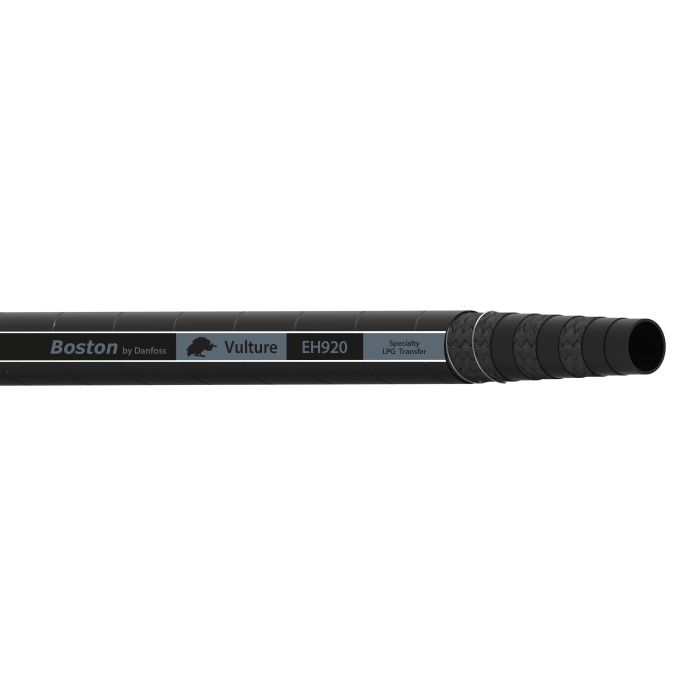

Designed specifically for liquefied petroleum gas transfer, this -32 dash size hose features a nitrile tube, neoprene pin-pricked cover, and a three-braid reinforcement combining textile and stainless steel wire. The construction supports reliable service across a broad temperature range, with a rated minimum working temperature of -40°F.

The Danfoss / Eaton UL21 LPG Transfer hose carries an embossed lay line and is compatible with swaged or crimp male couplings. Its black neoprene cover provides standard abrasion resistance suited to industrial LPG transfer environments.

Part of the Eaton Industrial Hose EH920 Series, this hose meets UL21 requirements and reflects a design focus on safety and dependability in fuel gas handling applications.

SKU: EH92032-150

Supplier Part Number (MPN): EH92032-150

Specifications

Abrasion Resistance Standard	Color Black	Conductivity Conductive	Construction 3 Braid	Cover Material Chloroprene	Cover Style Pin-Pricked	Dash Size 32	For Use With Swaged or Crimp Male Hose Fittings	Hose Type LPG	Lay Line Style Ink Transfer	Reinforcement Material Textile and Stainless Steel Wire	Resistance Properties Abrasion	Series EH920 Series	Tube Material NBR

Product Questions & Answers (2)

Question by: Phil R on Jul 23, 2025, 4:13 PM

What kind of couplings work with this hose?

Answer by: Customer Support on Jul 25, 2025, 8:35 AM

This hose is qualified to work with swaged or crimp male couplings.

Question by: Steve W on Sep 17, 2025, 7:13 PM

got a -32 line for propane transfer, will this hose take swaged or crimp male ends or am i stuck with something special

Answer by: Customer Support on Sep 19, 2025, 6:31 AM

For end connections, it is set up to work with swaged or crimp male couplings, so you are not locked into a specialty-only attachment style.
