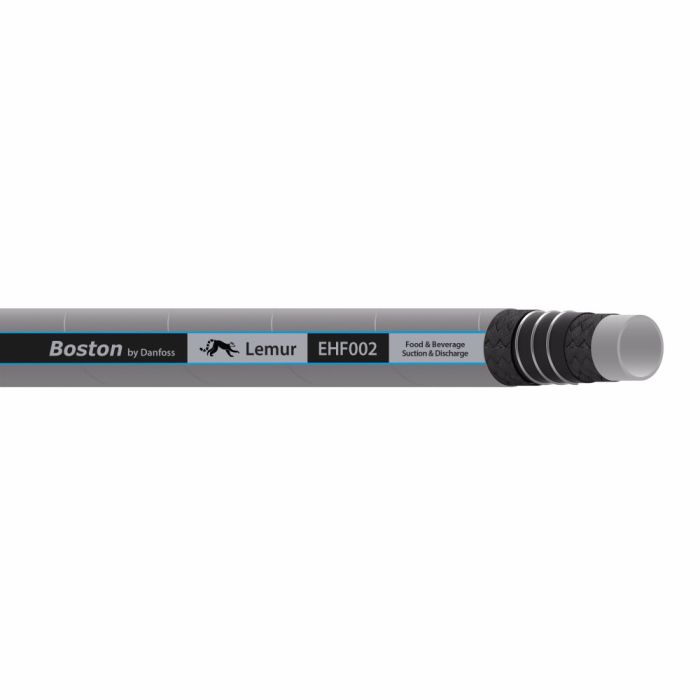

DANFOSS / EATON LIQUID FOOD SUCTION AND DISCHARGE

Description & Features

Designed for the suction and discharge of milk, vegetable oil, and beverages, the Danfoss / Eaton Liquid Food Suction and Discharge hose is built with a vegetable oil resistant NBR tube and a synthetic rubber cover, making it well-suited for food and beverage handling applications. A 2-ply braid reinforced with high-tensile synthetic textile and steel helix wire supports structural integrity across the hose assembly.

FDA approved for food-contact service, this gray hose carries a -40 dash size and a minimum bend radius of 11.02 inches. It is rated for use down to -40°F, and the lay line is applied via ink transfer. Compatible qualified fittings include cam and groove and combination nipple styles. Abrasion resistance is standard grade, suitable for typical industrial handling environments.

SKU: EHF002-40GY-100

Supplier Part Number (MPN): EHF002-40GY-100

Alternate Part Numbers: EHF002-40-100

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number EHF002-40-100, Alternate Part Number MINO-00115X00221	Application Suction and discharge of milk, vegetable oil and beverages.	Color Gray	Compliances FDA Approved	Construction 2-ply braid	Cover Material Synthetic Rubber	Dash Size -40	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 12.00	UOM FT	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Transfer	Minimum Bend Radius 11.02	Minimum Bend Radius 11.02	Minimum Working Temperature -40	NMFC 70	Product Width 3.09	Qualified Hose Fittings Cam and groove, Combination nipple	Reinforcement Material High-tensile synthetic textile and steel helix wire	Sub Brand None	Supplier Part Number EHF002-40GY-100	Tube Material Vegetable oil resistant NBR	Product Weight 0.78 lbs

Product Questions & Answers (1)

Question by: Dwayne F on Nov 11, 2025, 9:25 PM

Is this hose alright for hauling milk, like straight from the farm?

Answer by: Customer Support on Nov 13, 2025, 8:55 AM

Designed for the suction and discharge of milk, vegetable oil, and beverages, this hose is definitely suitable for your application.
