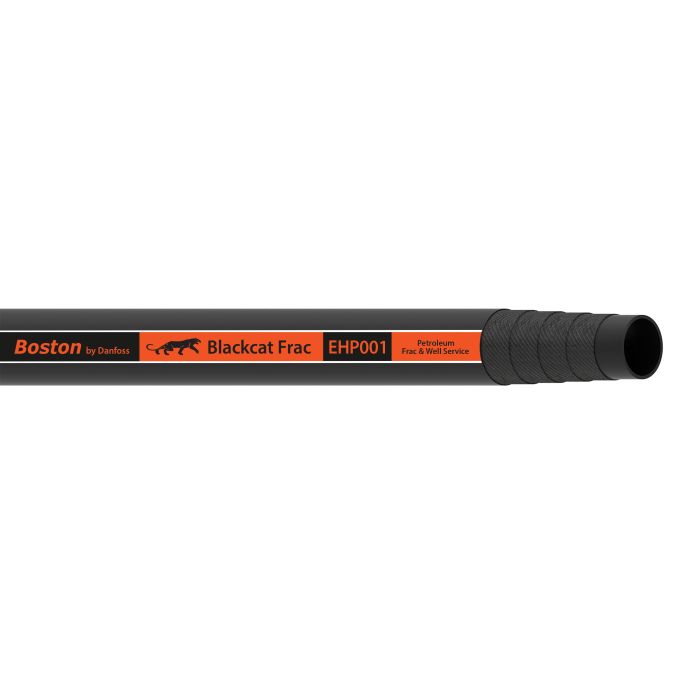

Designed specifically for petroleum oilfield exploration service, the Danfoss / Eaton Hose Blackcat Fracture 4in is a heavy-duty fracture hose built to handle the rigorous demands of frac applications. The 4-inch dash size (-64) hose features a nitrile blend tube, four-braid polyester reinforcement, and a UHMW cover, providing strong resistance to abrasion and hydrocarbon exposure in the field.
Compatible with King crimp style combination nipples and one-piece hammer union frac fittings, this hose integrates readily into standard frac line configurations. A minimum bend radius of 40 inches and a working temperature floor of -40°F support reliable performance across a broad range of field conditions. The ink transfer lay line and RMA Class A certification reflect the attention to safety and traceability that Danfoss Power Solutions has built into this product line since 1870.
SKU: EHP00164-100
Supplier Part Number (MPN): EHP00164-100
|
Alternate Part Numbers
MINO-00115X00239
|
Application
Petroleum-oilfield explore.
|
Certifications
RMA Class A
|
Color
Black
|
Construction
4 braid
|
Cover Material
UHMW
|
Dash Size
-64
|
Brand
Danfoss (IGS)
|
Brand
Danfoss Power Solutions
|
Pack Size
12.00
|
UOM
FT
|
Features
A solution for every hose need|Industry leader since 1870|Designed for safety and reliability
|
ICC
Hoses and Flexible Tubes
|
Language
English
|
Lay Line Style
Ink Transfer
|
Minimum Bend Radius
40
|
Minimum Bend Radius
40
|
Minimum Working Temperature
-40
|
NMFC
70
|
Product Width
4.67
|
Qualified Hose Fittings
King crimp style combination nipples, One-piece hammer union frac fitting
|
Reinforcement Material
Polyester
|
Sub Brand
None
|
Supplier Part Number
EHP00164-100
|
Tube Material
Nitrile Blend
|
Product Weight
2.42 lbs
|
