PETROLEUM /OIL S&D 300PSI 2.00ID

Description & Features

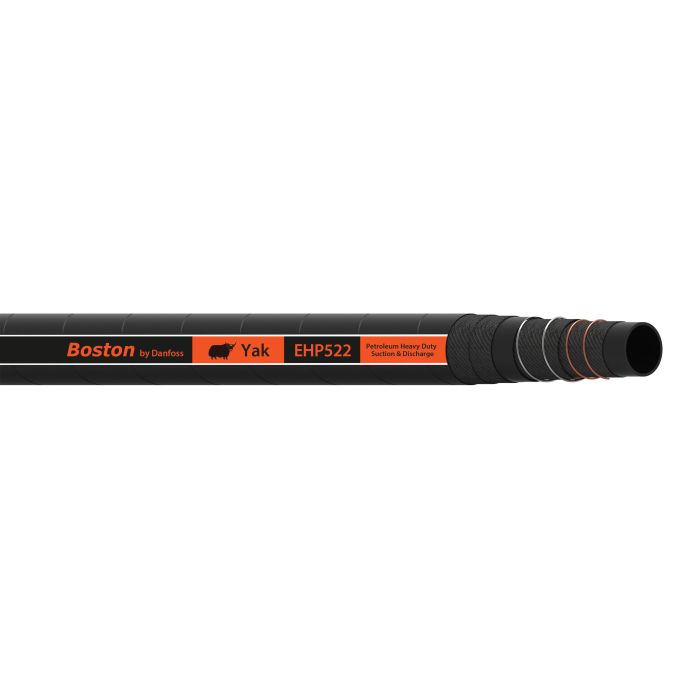

Designed for high-pressure petroleum suction and discharge service, the Petroleum/Oil S&D 300PSI 2.00ID is a 2-inch ID industrial hose built to handle demanding fluid transfer applications in oil and fuel handling environments. The synthetic rubber tube and extruded synthetic rubber cover provide compatibility with petroleum-based media, while a reinforcement layer of high-tensile synthetic textile combined with helical wire and anti-static copper wire supports both structural integrity and conductivity requirements.

Rated conductive and carrying RMA Class A certification, this hose is suited for applications where static dissipation is a consideration. A minimum bend radius of 7.87 inches and a working temperature floor of -31°F support use across a range of installation conditions. Compatible fittings include cam and groove and combination nipple styles. The lay line is ink transfer printed on a black cover, and the hose is sold under the Danfoss Power Solutions brand.

SKU: EHP522-32-100

Supplier Part Number (MPN): EHP522-32-100

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number MINO-00115X00263	Application High pressure petroleum suction and discharge.	Certifications RMA Class A	Class WEB-ITEM	Color Black	Conductivity 30	Construction Extruded	Cover Material Synthetic Rubber	Dash Size -32	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 12.00	UOM FT	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Transfer	Minimum Bend Radius 7.87	Minimum Bend Radius 7.87	Minimum Working Temperature -31	Product Width 2.69	Qualified Hose Fittings Cam and groove, Combination nipple	Reinforcement Material High-tensile synthetic textile with helical wire and anti-static copper wire	Supplier Part Number EHP522-32-100	Tube Material Synthetic Rubber	Product Weight 1.06 lbs

Product Questions & Answers (1)

Question by: Harvey A on Jan 17, 2026, 8:12 AM

What kind of fittings work with this hose? Cam lock and what else?

Answer by: Customer Support on Jan 19, 2026, 8:09 AM

Qualified fittings include both cam and groove, plus combination nipple styles.
