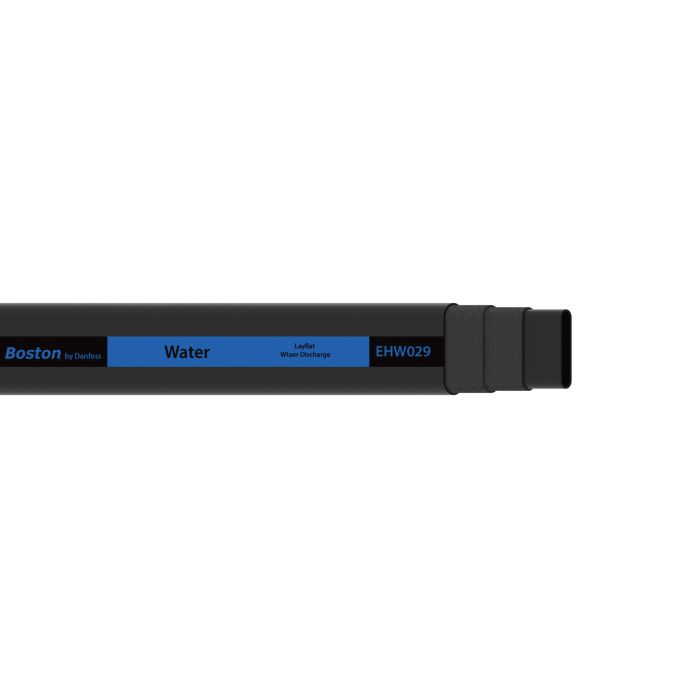

DANFOSS / EATON EPDM LAYFLAT DISCHARGE 3 150PSI

Description & Features

Rated for 150 PSI working pressure, the Danfoss / Eaton EPDM Layflat Discharge 3 150PSI is a 3-inch discharge hose built for agricultural and industrial water discharge applications. Both the tube and cover are constructed from EPDM, offering reliable performance across a wide temperature range down to -40°F. The extruded construction incorporates high-tensile synthetic textile reinforcement, contributing to durability under sustained discharge loads.

The layflat design allows for compact storage and easy deployment in the field. Compatible fittings include shank-type male x female and cam and groove connections, making it straightforward to integrate into existing discharge setups. The ink transfer lay line provides clear identification along the hose length. With a minimum bend radius of 90 and a black EPDM cover offering standard abrasion resistance, this hose is well-suited for demanding water discharge environments where reliability and consistent performance are priorities.

SKU: EHW029-48-100

Supplier Part Number (MPN): EHW029-48-100

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number MINO-00115X00152	Application For discharge of water in agricultural and industrial applications.	Color Black	Construction Extruded	Cover Material EPDM	Dash Size -48	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 12.00	UOM FT	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Transfer	Minimum Bend Radius 90	Minimum Bend Radius 90	Minimum Working Temperature -40	Product Width 3.27	Qualified Hose Fittings Shank type male x female, Cam and groove	Reinforcement Material High-tensile synthetic textile	Sub Brand None	Supplier Part Number EHW029-48-100	Tube Material EPDM	Product Weight 0.38 lbs

Product Questions & Answers (1)

Question by: Steve H on Oct 17, 2025, 7:22 PM

How flexible is this hose, really? I need something that can bend pretty good without kinking.

Answer by: Customer Support on Oct 19, 2025, 1:23 PM

With a minimum bend radius of 90, this hose will give you decent flexibility for most discharge applications without kinking.
