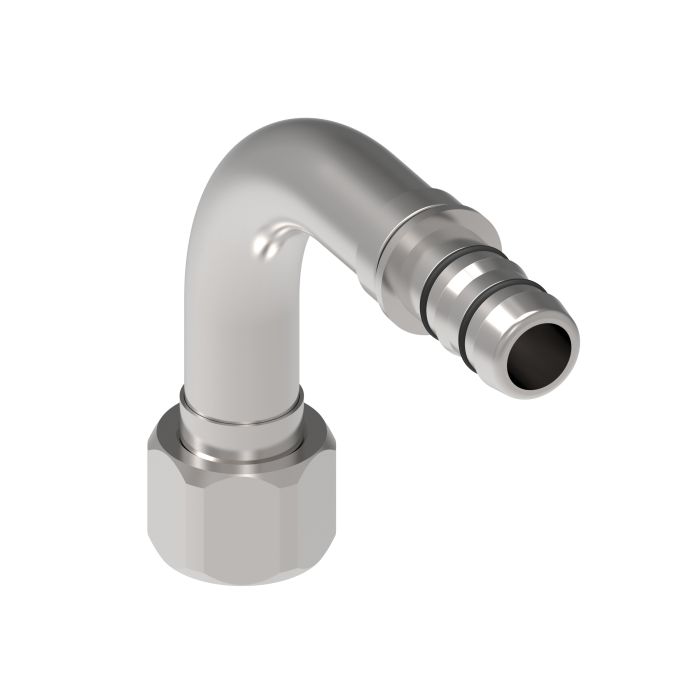

main product photo

90° Female JIC 37° Flare

Ask A Question

Description & Features

Constructed from carbon steel, this 90° Female JIC 37° Flare elbow fitting is part of the Eaton Aeroquip E-Z Clip system, designed for A/C refrigeration applications. The fitting connects a 9/16 in. SAE 37° flare end to a -8 dash size hose or tube end, with a 90-degree angle that aids in routing hose assemblies through tight or space-constrained installations.

Rated for a broad range of industrial and refrigeration service conditions, this carbon steel fitting is built for durability and consistent performance. The design is intended to reduce assembly time, making it practical for production environments where throughput matters. At 0.5 lb and a compact profile with a 1.69 in. drop dimension, it fits well in assemblies where space and weight are considerations.

SKU: EJ3533-03-0608S

Supplier Part Number (MPN): EJ3533-03-0608S

Specifications

Brand
Danfoss
a Dimensions
3.28 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
1.74 in
Drop Dimensions
2 in
End Connection Torque
18 to 20 lb-ft
End Gender 1
Female
End Size 1
9/16 in
End Size 2
1/2 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH134 Series Hoses
Hex Size
11/16 in
Hose Dash Size
08
Inside Diameter
0.24 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Series
EJ3533 Series
Thread Sealant
Without Thread Sealant
Thread Size
9/16-18
Thread Type
UNF

Product Questions & Answers (1)

Question by: Ralph S on Jul 31, 2025, 6:25 PM
Reckon this fitting will hold up in a refrigeration system that sees a lot of vibration?
Answer by: Customer Support on Aug 2, 2025, 8:52 AM
Carbon steel construction provides good durability for refrigeration applications, and it's designed to maintain a reliable seal under normal operating vibration.
