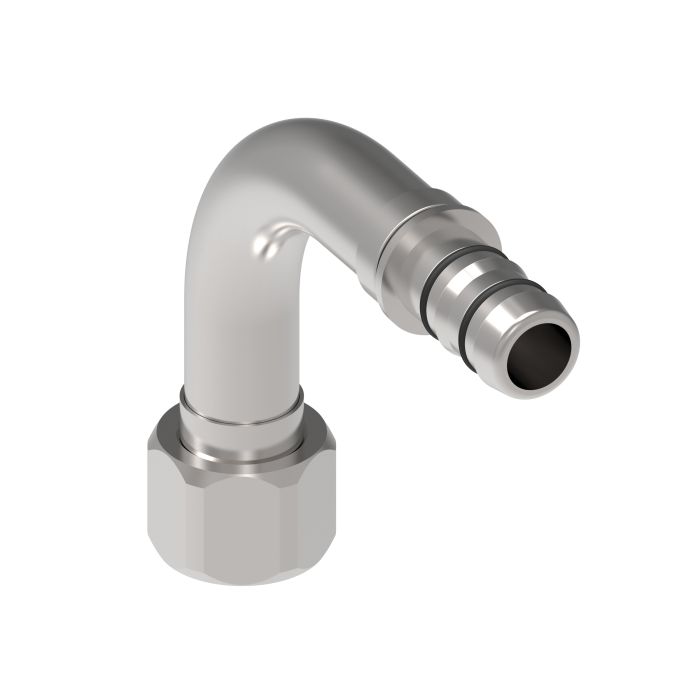

main product photo

90° Female JIC 37° Flare

Ask A Question

Description & Features

Constructed from carbon steel, this 90° Female JIC 37° Flare elbow fitting is part of the Eaton Aeroquip E-Z Clip system, designed for A/C refrigeration applications where reliable, angle-routed connections are required. The female JIC 37° flare end mates with standard JIC-style hose and tube assemblies, while the 90° orientation allows for compact routing in space-constrained installations.

With a hose dash size of -12 and a drop dimension of 3.02 inches, this fitting assembly suits mid-range refrigeration line configurations. Aeroquip's design focuses on reducing assembly time without sacrificing connection integrity, making it a practical choice for production environments and field service work across a wide range of industrial refrigeration applications.

SKU: EJ3533-06-1212S

Supplier Part Number (MPN): EJ3533-06-1212S

Specifications

Brand
Danfoss
a Dimensions
4.11 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
2.53 in
Dimensions
4.73 in L x 1.25 in W x 3.85 in H
Drop Dimensions
3.02 in
End Gender 1
Female
End Size 1
12
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
GH134 Series Hoses
Hex Size
1.26 in
Hose Dash Size
12
Inside Diameter
0.475 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
C
Series
EJ3533 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-12
Thread Type
UN

Product Questions & Answers (1)

Question by: Carl W on Jul 11, 2025, 5:39 PM
fitting's rated for refrigerant lines, or is this more of a general hydraulic elbow?
Answer by: Customer Support on Jul 13, 2025, 6:51 AM
Built specifically for A/C refrigeration applications, not general hydraulic service. The female JIC 37° flare end mates with standard JIC-style hose and tube assemblies, so it's right at home on refrigeration line work. The 90° angle helps where you're working in tight spots and need to route lines without a lot of extra room to work with.
