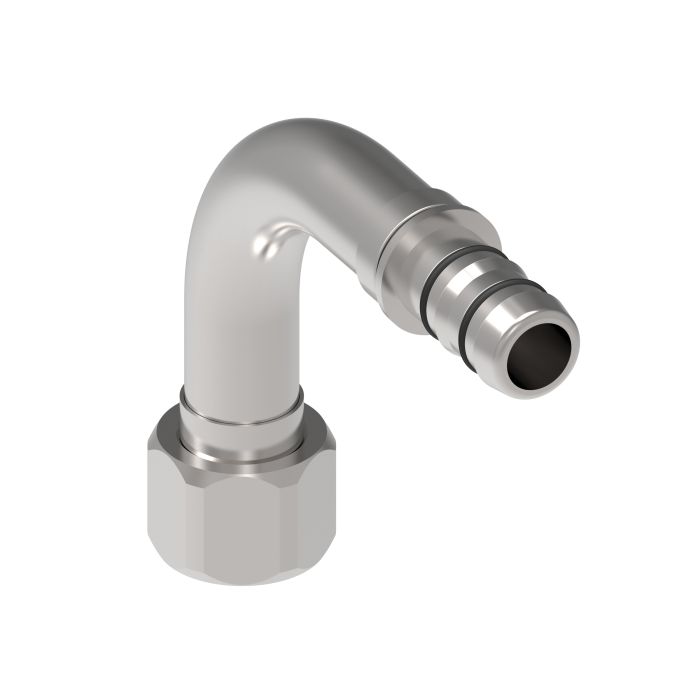

main product photo

Danfoss / Eaton Danfoss / Eaton EZ Clip EJ3533-07-1616S 90° Female JIC 37° Flare Carbon Steel Compatible Hose ID 1 5/16 - 12 IN JIC 37 Female

Ask A Question

Description & Features

Designed for A/C refrigeration and fluid line assemblies, this 90° elbow fitting connects a Female JIC 37° Flare end to a compatible hose using the Eaton Aeroquip EZ Clip system. Constructed from carbon steel, it is built to withstand demanding industrial environments and carries a torque rating of 117–125 lb/ft for a reliable, leak-resistant connection.

The Danfoss / Eaton EZ Clip EJ3533-07-1616S 90° Female JIC 37° Flare Carbon Steel fitting is compatible with 1-5/16 in. (–16 dash size) hose ID and features a drop dimension of 4.45 in., making it well-suited for routing hose assemblies in confined or angled installations. The EZ Clip nipple assembly design is intended to reduce assembly time while maintaining consistent, dependable performance across a wide range of refrigeration and hydraulic line applications.

SKU: EJ3533-07-1616S

Supplier Part Number (MPN): EJ3533-07-1616S

Specifications

Brand
Danfoss
a Dimensions
5.16 in
Compatible Hose ID
1 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
3.48 in
Dimensions
5.21 in L x 1 in W x 2.57 in H
Drop Dimensions
3.86 in
End Gender 1
Female
End Gender 2
Male
End Size 1
16
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
GH134 Series Hoses
Hex Size
1-1/2 in
Hose Dash Size
16
Inside Diameter
0.646 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
C
Series
EJ3533 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-5/16-12
Thread Type
UN
Torque Rating
117 to 125 lb-ft

Product Questions & Answers (1)

Question by: Rick G on Jun 23, 2025, 1:00 PM
Hey, I'm trying to replace a fitting on my AC unit. Will this connect a JIC 37° flare to a 1 5/16 inch hose?
Answer by: Customer Support on Jun 24, 2025, 1:03 PM
Yes, this 90° elbow fitting is designed to connect a Female JIC 37° Flare end to a hose with a 1-5/16 inch ID using the Eaton Aeroquip EZ Clip system.
