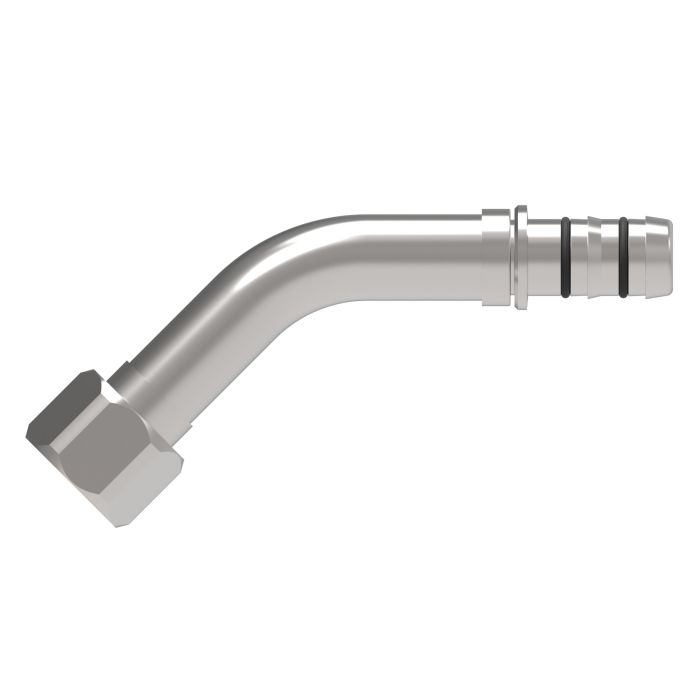

45° Female JIC 37° Flare

Ask A Question

Description & Features

This Eaton Aeroquip 45° Female JIC 37° Flare is a reusable refrigeration fitting suitable for a wide range of applications. Built with carbon steel, this durable and dependable nipple assembly is designed to cut assembly times and boost production.

This female fitting features a JIC 37° end type and a line/hose/tube end type, with an end size of 1 and a hose dash size of -16. The drop dimension is 1.9200.

SKU: EJ3534-07-1616S

Supplier Part Number (MPN): EJ3534-07-1616S

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
5.46 in
Compatible Hose ID
1 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 37 deg JIC Flare Swivel
Construction Style
Reusable
Cut-Off Factor
3.79 in
Dimension Standards
SAE J514
Drop Dimensions
2 in
End Connection Torque
108 to 113 lb-ft
End Gender 1
Female
End Size 1
16
End Size 2
1 in
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
GH134 Series Hoses
Hex Size
1-1/2 in
Hose Dash Size
16
Inside Diameter
0.646 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
HNBR
Segment Code
C
Series
EJ3534 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-5/16-12
Thread Type
UN

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Melvin K on Aug 20, 2025, 4:28 PM
What size is this fitting, and will it work with a -16 hose?
Answer by: Customer Support on Aug 22, 2025, 3:20 PM
Yes, this Eaton Aeroquip fitting has an end size of 1 and is specifically designed for use with a hose dash size of -16.
Question by: Rex F on Aug 30, 2025, 8:00 PM
got a -16 hose, will this 45° female JIC fitting match up or am i off a size
Answer by: Customer Support on Sep 1, 2025, 6:03 AM
The key callouts are a -16 hose dash size and a female JIC 37 degree end with end size 1 on the line hose tube side. If your setup is a -16 hose and you need a 45 degree female JIC 37 degree flare connection, this nipple assembly is built around that combination.
