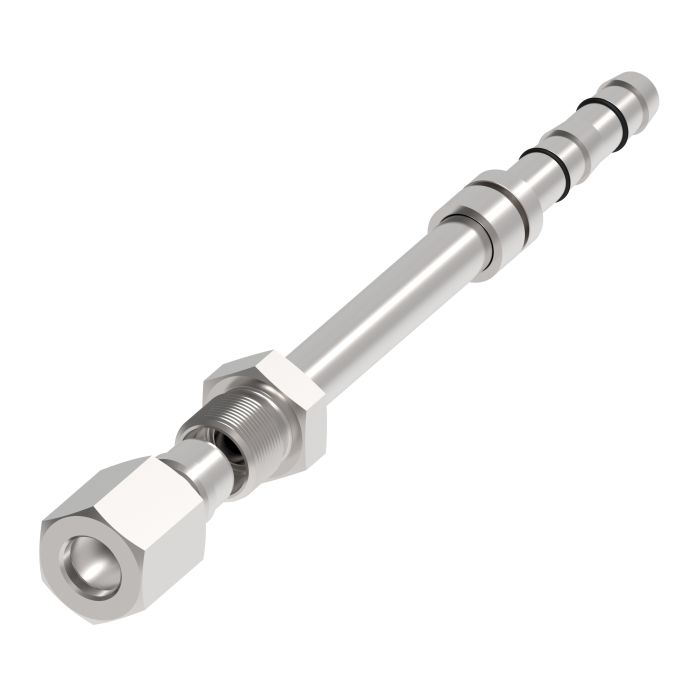

main product photo

E-Z CLIP FlareLESS Fitting

Ask A Question

Description & Features

Manufactured from carbon steel, this Aeroquip E-Z Clip FlareLESS Fitting is a flareless fitting assembly designed to reduce assembly time in A/C refrigeration and hydraulic line applications. It connects to a 9/16" UN female end on one side and accepts a line, hose, or tube connection on the other, with a hose dash size of -6.

The E-Z Clip system is built for a wide range of industrial applications where reliable, consistent connections are needed without the added step of flaring. Carbon steel construction provides durability suited to demanding service environments, and the design supports faster production line assembly compared to traditional fitting methods.

SKU: EJ3809-01-0606S

Supplier Part Number (MPN): EJ3809-01-0606S

Specifications

Brand
Danfoss
a Dimensions
4.92 in
Compatible Hose ID
3/8 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Compression, Hose
Connection Type 1
Hose
Connection Type 2
Compression
Construction Style
Reusable
Cut-Off Factor
3.4 in
Dimensions
4.92 in L
End Gender 1
Female
End Size 1
9/16 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
GH134 Series Hoses
Hex Size
11/16 in
Hose Dash Size
06
Inside Diameter
0.22 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
A
Series
EJ3809 Series
Thread Sealant
Without Thread Sealant
Thread Size
9/16-18
Thread Type
UNF

Product Questions & Answers (1)

Question by: Rex E on Apr 14, 2025, 10:49 AM
What's the outside diameter of the threaded end?
Answer by: Customer Support on Apr 15, 2025, 1:45 PM
The female UN end measures 0.5625 inches, or roughly 9/16".
