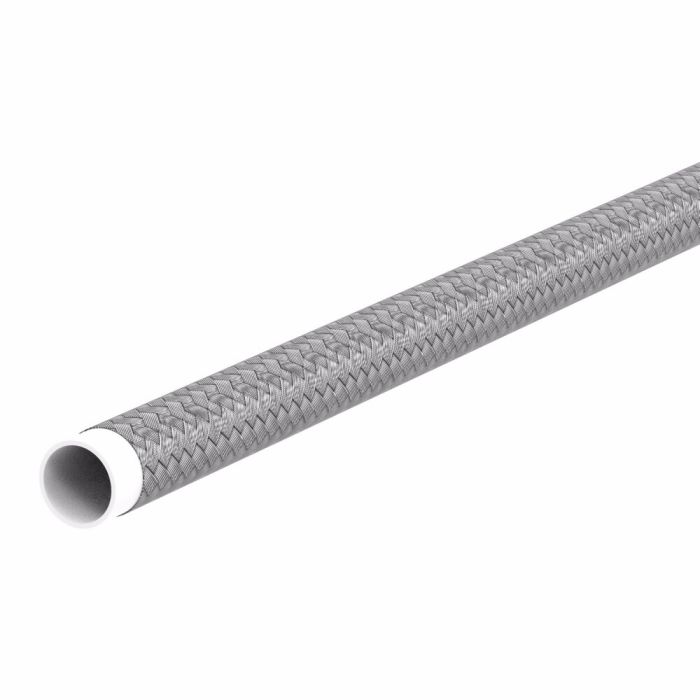

Danfoss / Eaton Winner PTFE Reel

Description & Features

The Danfoss / Eaton Winner PTFE Reel features a stainless steel cover for premium abrasion resistance. Constructed with an extruded tube and braided cover, it is suitable for steam, compressor discharge, and virtually all chemical applications. However, it is not recommended for steam-cold water cycling.

This non-conductive hose withstands vibration and impulsing and is impervious to degradation within a wide temperature range. It meets SAE 100R14A, SAE 100R14B, and SAE J517 certifications. Compatible with E series, Field Attachable, and FC Series qualified hose fittings. Minimum bend radius: 6.5.

SKU: EN-10TW250R

Supplier Part Number (MPN): EN-10TW250R

Specifications

Abrasion Resistance 28	Application Ideal for steam, compressor discharge and virtually all chemical applications. Not recommended for steam-cold water cycling.	Certifications SAE 100R14A\|SAE 100R14B\|SAE J517	Color Stainless Steel	Conductivity 13552	Construction Extruded with braided cover	Cover Material Stainless Steel	Dash Size -10	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Withstands vibration and impulsing\|Impervious to degradation\|Wide temperature range	ICC Hoses and Flexible Tubes	Impulse Cycle Life 150000 cycle	Language English	Minimum Bend Radius 6.50	Minimum Bend Radius 6.5	Minimum Working Temperature -65	Product Width 0.65	Qualified Hose Fittings E series, Field Attachable, FC Series	Reinforcement Material None	Sub Brand Winner	Supplier Part Number EN-10TW250R	Tube Material PTFE	Product Weight 0.45 lbs

Product Questions & Answers (2)

Question by: Duane J on Sep 21, 2025, 5:46 PM

what kinda chemicals can this hose actually handle? asking because we run some pretty aggressive stuff through our lines and cant afford a hose that breaks down on us

Answer by: Customer Support on Sep 23, 2025, 3:00 PM

PTFE tubing is about as chemically resistant as you can get in a flexible hose. The extruded PTFE tube material holds up against virtually all chemical applications, which covers a wide range of aggressive fluids and solvents that would eat through rubber or standard thermoplastic hose in short order. The stainless steel braided cover adds another layer of protection on the outside. One thing worth noting upfront: this hose is not recommended for steam-cold water cycling. If your process alternates between steam and cold water, this is not the right fit. For straight chemical service or compressor discharge without that hot-cold cycling, it is a solid choice.

Question by: Rusty S on Mar 20, 2026, 1:42 PM

What kind of fittings work with this hose? I've got some E series stuff lying around.

Answer by: Customer Support on Mar 21, 2026, 7:13 PM

This Winner PTFE reel works with E series, Field Attachable, and FC Series qualified hose fittings.
