Danfoss / Eaton Winner PTFE Reel

Description & Features

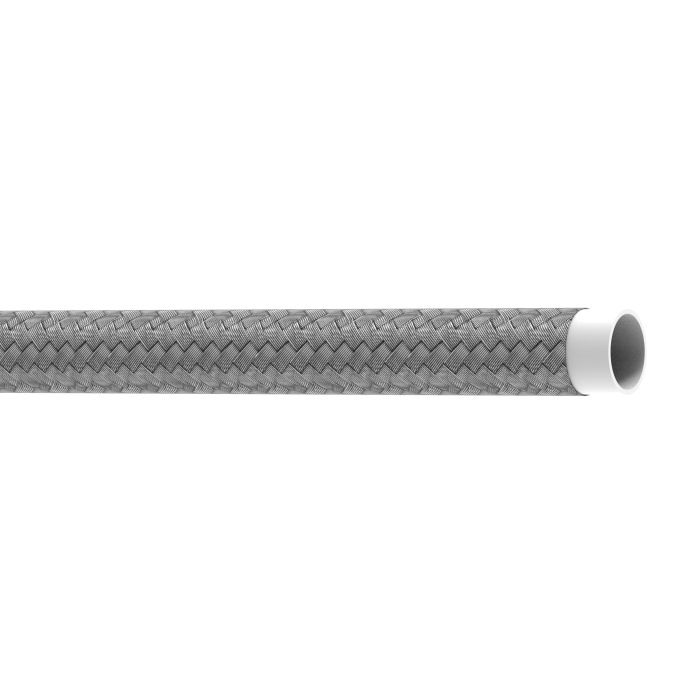

Constructed with an extruded PTFE tube and a braided stainless steel cover, the Danfoss / Eaton Winner PTFE Reel is well-suited for steam, compressor discharge, and a broad range of chemical transfer applications. The PTFE tube material provides inherent imperviousness to chemical degradation, while the stainless steel braid reinforcement supports a minimum bend radius of 7.87 inches in a -12 dash size configuration.

Rated to a minimum working temperature of -65°F, this hose handles wide thermal ranges and withstands vibration and impulse cycling up to 150,000 cycles. It meets SAE J517, SAE 100R14A, and SAE 100R14B standards and is compatible with E Series, Field Attachable, and Fc Series fittings. Note that this product is not recommended for steam-to-cold-water cycling applications. The non-conductive construction suits environments where electrical isolation is a consideration.

SKU: EN-12TW250R

Supplier Part Number (MPN): EN-12TW250R

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MINO-20974X00314	Application Ideal for steam, compressor discharge and virtually all chemical applications. Not recommended for steam-cold water cycling.	Certifications SAE J517\|SAE 100R14B\|SAE 100R14A	Color Stainless Steel	Conductivity 13552	Construction Extruded with braided cover	Cover Material Stainless Steel	Dash Size -12	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Withstands vibration and impulsing\|Impervious to degradation\|Wide temperature range	ICC Hoses and Flexible Tubes	Impulse Cycle Life 150000 cycle	Language English	Minimum Bend Radius 7.87	Minimum Bend Radius 7.87	Minimum Working Temperature -65	Product Width 0.78	Qualified Hose Fittings E series, Field Attachable, FC Series	Reinforcement Material None	Sub Brand Winner	Supplier Part Number EN-12TW250R	Tube Material PTFE	Product Weight 0.64 lbs

Product Questions & Answers (1)

Question by: Vince F on May 20, 2025, 8:03 AM

I need a hose that can handle some heat. What's the highest temp this thing can take?

Answer by: Customer Support on May 22, 2025, 6:32 AM

This hose is rated down to -65°F, so it should handle a pretty wide range of temperatures.
