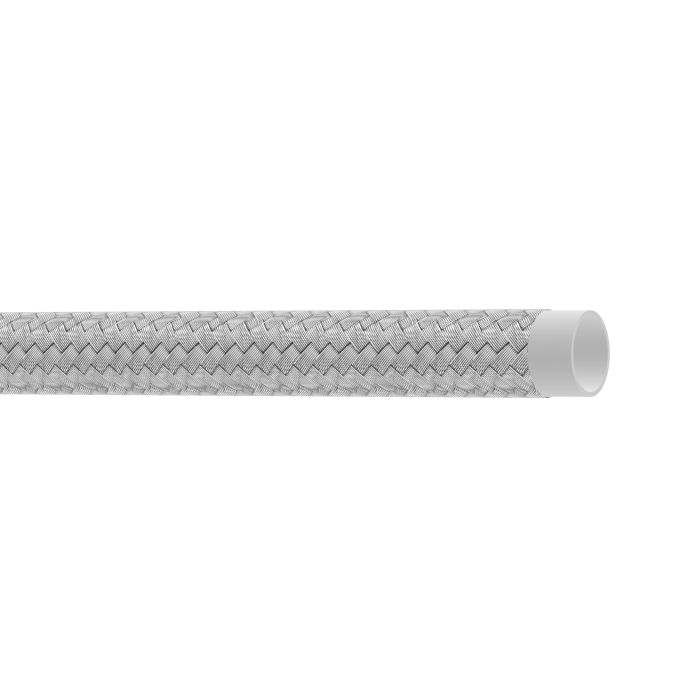

Danfoss / Eaton Winner PTFE NC 100R14 Hose

Description & Features

Winner by Danfoss / Eaton EN-TW Series PTFE and Teflon Hose and Tubing features a stainless steel cover and is constructed with an extruded and braided design. The Danfoss / Eaton Winner PTFE NC 100R14 Hose is ideal for steam, compressor discharge and virtually all chemical applications. However, it is not recommended for steam-cold water cycling.

This non-conductive hose is certified to SAE 100R14B and SAE 100R14A and withstands vibration and impulsing. It offers premium abrasion resistance and a wide temperature range, down to a minimum working temperature of -65 degrees. With an impulse cycle life of 100000 cycles, this hose is also impervious to degradation. Qualified hose fittings include E series, Field Attachable, and FC Series.

SKU: EN-18TW

Supplier Part Number (MPN): EN-18TW

Specifications

Brand
Winner by Danfoss
Abrasion Resistance
Premium
Conductivity
Non-Conductive
Cover Material
Stainless Steel
Dash Size
18
For Use With
E Series, Field Attachable, FC Series, Swage Fittings
Hose Type
Non-Conductive, Smooth Bore
Impulse Cycle
150000
Inside Diameter
1 in
Nominal Size
1 in
Outside Diameter
1.17 in
Package Form
Bulk
Reinforcement
1-Wire Braided Stainless Steel Wire
Resistance Properties
Abrasion
Segment Code
C
Series
EN-TW Series
Tube Material
PTFE

Similar Products

Model Number Nominal Size Price Action
DANFOSS / EATON WINNER PTFE 100R14 HOSE 1/4

EN-4TW

1/4 in

DANFOSS / EATON WINNER PTFE 100R14 HOSE 5/16

EN-5TW

5/16 in

DANFOSS / EATON WINNER PTFE 100R14 HOSE 3/8

EN-6TW

3/8 in

Danfoss / Eaton Hose, PTFE R14, NON-CON, MULTI PCS

EN-7TW

DANFOSS / EATON WINNER PTFE 100R14 HOSE 1/2

EN-8TW

1/2 in

Danfoss / Eaton Winner PTFE 100R14 Hose 1/2 ID

EN-10TW

Danfoss / Eaton Winner PTFE 100R14 Hose 5/8 ID

EN-12TW

3/4 in

Hose, PTFE, WinnerNon-Conductive 100R14

EN-14TW

Danfoss / Eaton Winner PTFE 100R14 Hose 7/8 ID

EN-16TW

1 in

Product Questions & Answers (2)

Question by: Stan H on Dec 29, 2025, 7:05 AM
What kind of fittings will work with this hose?
Answer by: Customer Support on Dec 30, 2025, 9:17 PM
This hose is qualified to work with E series, Field Attachable, and FC Series fittings.
Question by: Melvin W on Jun 10, 2025, 10:02 AM
got a steam line that sees some vibration, would this PTFE hose hold up to that kind of shaking?
Answer by: Customer Support on Jun 11, 2025, 1:40 PM
Built to handle vibration and impulsing, the Winner PTFE NC 100R14 hose is a common fit for steam service and it is also rated with a 100000 impulse cycle life.
