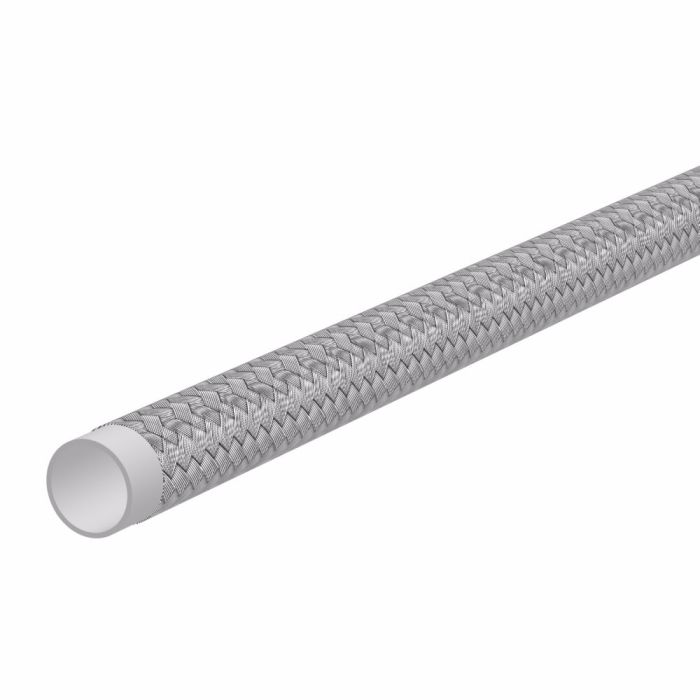

Danfoss / Eaton Winner PTFE NC 100R14 Hose

Ask A Question

Description & Features

The Eaton Aeroquip Winner PTFE NC 100R14 hose, constructed with a stainless steel cover, is ideal for steam and chemical applications, including compressor discharge. This -18 dash size hose offers premium abrasion resistance and is impervious to degradation, making it suitable for demanding industrial environments.

The Danfoss / Eaton Winner PTFE NC 100R14 Hose is designed to withstand vibration and impulsing across a wide temperature range, with a minimum bend radius of 11.81 inches. It meets SAE 100R14A, SAE 100R14B, and SAE J517 certifications and has an impulse cycle life of 100,000 cycles.

SKU: EN-18TW250R

Supplier Part Number (MPN): EN-18TW250R

Specifications

Abrasion Resistance
28
Alternate Part Numbers
Alternate Part Number MINO-20974X00323
Application
Ideal for steam, compressor discharge and virtually all chemical applications. Not recommended for steam-cold water cycling.
Certifications
SAE 100R14A|SAE 100R14B|SAE J517
Color
Stainless Steel
Conductivity
13552
Construction
Extruded with braided cover
Cover Material
Stainless Steel
Dash Size
-18
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Features
Withstands vibration and impulsing|Impervious to degradation|Wide temperature range
ICC
Hoses and Flexible Tubes
Impulse Cycle Life
100000 cycle
Language
English
Minimum Bend Radius
11.81
Minimum Bend Radius
11.81
Minimum Working Temperature
-65
Product Width
1.17
Qualified Hose Fittings
E series, Field Attachable, FC Series, Swage
Reinforcement Material
None
Sub Brand
Winner
Supplier Part Number
EN-18TW250R
Tube Material
PTFE
Product Weight
1.38 lbs

Related Documents

Product Questions & Answers (2)

Question by: Lee J on Jun 28, 2025, 4:45 PM
running this on compressor discharge lines, is it gonna hold up to that kind of heat and pressure cycling without breaking down?
Answer by: Customer Support on Jun 30, 2025, 7:47 AM
Compressor discharge is actually one of the listed applications for this hose, so you're in the right place. The PTFE tube construction makes it impervious to degradation, and the stainless steel braided cover adds durability where abrasion is a concern. It's built to handle vibration and impulse cycling up to 100,000 cycles, so the pressure fluctuations that come with compressor discharge work fall well within what it was made for. Just keep in mind it's not recommended for steam-to-cold water cycling, so if your system swings between steam and cold water, this wouldn't be the right fit.
Question by: Roy M on Feb 5, 2026, 9:00 AM
running steam through this hose, is there anything it dont like doing?
Answer by: Customer Support on Feb 6, 2026, 12:14 PM
One important limitation is steam to cold water cycling. This hose is not recommended for that kind of back and forth temperature service, even though it is intended for steam use.
