Danfoss / Eaton Winner PTFE Reel

Description & Features

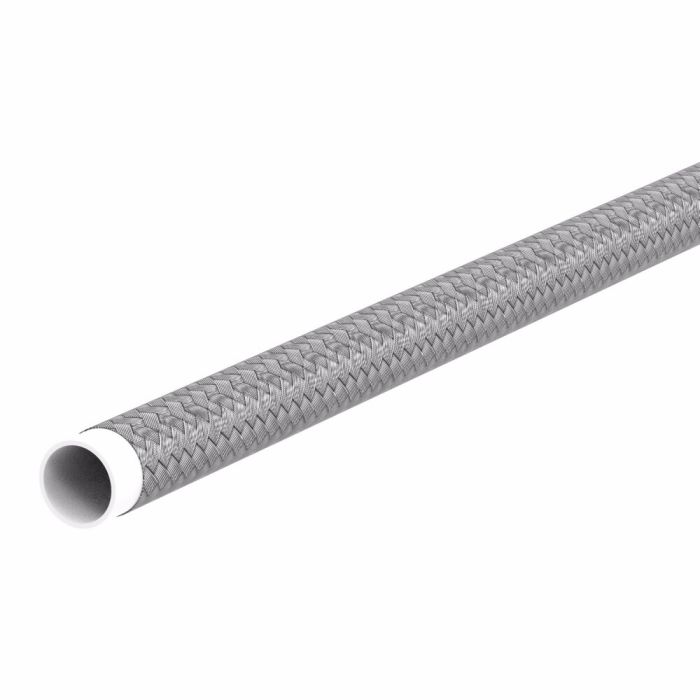

Constructed with an extruded PTFE tube and a stainless steel braided cover, the Danfoss / Eaton Winner PTFE Reel is built for demanding chemical, steam, and compressor discharge service. The PTFE core is impervious to degradation across a wide range of media, making it suitable for virtually all chemical transfer applications. Note that this hose is not recommended for steam-to-cold water cycling.

Rated to SAE 100R14A, SAE 100R14B, and SAE J517, this -4 dash size hose carries a minimum bend radius of 1.97 inches and a rated impulse cycle life of 100,000 cycles. It handles a minimum working temperature of -65°F and withstands vibration and impulse conditions. Compatible fittings include E Series, Field Attachable, FC Series, and Swage-style connections.

SKU: EN-4TW250R

Supplier Part Number (MPN): EN-4TW250R

Specifications

Abrasion Resistance 28	Application Ideal for steam, compressor discharge and virtually all chemical applications. Not recommended for steam-cold water cycling.	Certifications SAE 100R14A\|SAE 100R14B\|SAE J517	Color Stainless Steel	Conductivity 13552	Construction Extruded with braided cover	Cover Material Stainless Steel	Dash Size -4	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Withstands vibration and impulsing\|Impervious to degradation\|Wide temperature range	ICC Hoses and Flexible Tubes	Impulse Cycle Life 100000 cycle	Language English	Minimum Bend Radius 1.97	Minimum Bend Radius 1.97	Minimum Working Temperature -65	Product Width 0.30	Qualified Hose Fittings E series, Field Attachable, FC Series, Swage	Reinforcement Material None	Sub Brand Winner	Supplier Part Number EN-4TW250R	Tube Material PTFE	Product Weight 0.22 lbs

Product Questions & Answers (3)

Question by: Gene M on Aug 25, 2025, 5:18 PM

Got a compressor discharge line that sees some pretty nasty chemical exposure on top of the heat. Would this hose hold up to both at the same time?

Answer by: Customer Support on Aug 26, 2025, 9:49 PM

PTFE cores handle that combination better than most hose materials out there. The tube itself is impervious to degradation across a wide range of media, so chemical exposure won't eat through it, and it's built specifically for compressor discharge service where heat and pressure are both factors. The stainless steel braid over the outside adds durability without adding a lot of bulk. Rated to SAE 100R14A, 100R14B, and SAE J517, so it meets the pressure and performance standards you'd expect for that kind of application.

Question by: Gene J on Nov 30, 2025, 4:21 PM

got a tight spot to snake this line through, how tight can i bend the -4 hose without kinkin it?

Answer by: Customer Support on Dec 2, 2025, 4:12 PM

For the -4 dash size, the minimum bend radius is 1.97 inches. Staying at or above that radius helps keep the PTFE tube from getting stressed or kinked.

Question by: Marvin P on Jan 19, 2026, 2:26 PM

Can this hose handle the stuff I use to clean my equipment? It's pretty harsh.

Answer by: Customer Support on Jan 21, 2026, 6:27 AM

Constructed with an extruded PTFE tube, this hose is designed to be impervious to degradation across a wide range of media, making it suitable for virtually all chemical transfer applications.
