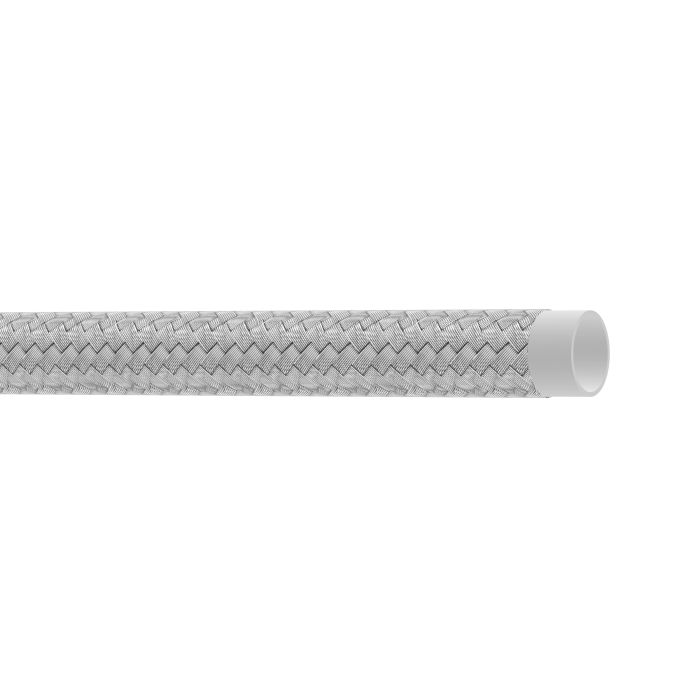

DANFOSS / EATON WINNER PTFE 100R14 HOSE 5/16

Ask A Question

Description & Features

The Eaton Aeroquip Winner PTFE 100R14 hose features a stainless steel cover, providing premium abrasion resistance and withstanding vibration and impulsing. This hose is impervious to degradation and offers a wide temperature range.

Constructed with an extruded PTFE tube and braided stainless steel cover, this -5 dash size hose is suitable for use in steam, compressor discharge, and chemical applications. It is not recommended for steam-cold water cycling. Qualified fittings include E series, Field Attachable, and FC Series.

SKU: EN-5TW

Supplier Part Number (MPN): EN-5TW

Specifications

Abrasion Resistance
28
Application
Ideal for steam, compressor discharge and virtually all chemical applications. Not recommended for steam-cold water cycling.
Certifications
SAE 100R14B|SAE J517|SAE 100R14A
Color
Stainless Steel
Conductivity
13552
Construction
Extruded with braided cover
Cover Material
Stainless Steel
Dash Size
-5
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Features
Withstands vibration and impulsing|Impervious to degradation|Wide temperature range
ICC
Hoses and Flexible Tubes
Impulse Cycle Life
100000 cycle
Language
English
Minimum Bend Radius
2.95
Minimum Bend Radius
2.95
Minimum Working Temperature
-65
Product Width
0.39
Qualified Hose Fittings
E series, Field Attachable, FC Series, Swage
Reinforcement Material
None
Sub Brand
Winner
Supplier Part Number
EN-5TW
Tube Material
PTFE
Product Weight
0.23 lbs

Related Documents

Product Questions & Answers (1)

Question by: Dwayne B on Mar 26, 2026, 7:12 AM
Got a setup running compressor discharge lines and been burning through hoses faster than I'd like. This a PTFE build or just coated on the outside?
Answer by: Customer Support on Mar 27, 2026, 8:12 AM
Straight PTFE tube all the way through, extruded construction with a braided stainless steel cover over it. That combination holds up well against the kind of chemical exposure and heat that tends to eat through standard hose builds. The stainless cover also handles abrasion and vibration, which is usually what causes early wear on discharge lines.
