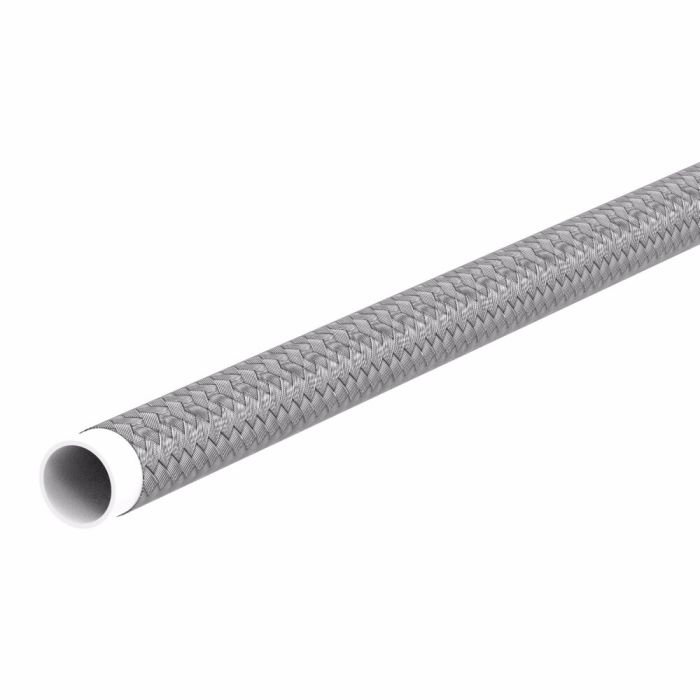

main product photo

DANFOSS / EATON WINNER PTFE 100R14 HOSE 3/8

Ask A Question

Description & Features

The DANFOSS Winner PTFE 100R14 Hose 3/8 featuring a braided stainless steel cover is ideal for demanding steam compressor discharge and chemical applications. This hose is designed to withstand vibration and impulsing making it a reliable choice for various industrial uses.

Constructed with extruded PTFE tube material it is impervious to degradation and maintains structural integrity in a wide temperature range. The hose has a minimum bend radius of 4 inches providing flexibility while ensuring durability.

Certified to SAE 100R14B SAE J517 and SAE 100R14A standards it guarantees high performance and safety. The non-conductive property enhances its suitability for diverse applications without the risk of electrical interference.

Engineered for long-lasting use the DANFOSS PTFE 100R14 Hose 3/8 boasts an impressive impulse cycle life of 150 000 cycles. Its premium abrasion resistance further extends its lifespan in rugged conditions.

Supplier Part Number: EN-6TW

Specifications

Abrasion Resistance
28
Application
Ideal for steam, compressor discharge and virtually all chemical applications. Not recommended for steam-cold water cycling.
Certifications
SAE 100R14B|SAE J517|SAE 100R14A
Color
Stainless Steel
Conductivity
13552
Construction
Extruded with braided cover
Cover Material
Stainless Steel
Dash Size
-6
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Features
Withstands vibration and impulsing|Impervious to degradation|Wide temperature range
ICC
Hoses and Flexible Tubes
Impulse Cycle Life
150000 cycle
Language
English
Minimum Bend Radius
4
Minimum Bend Radius
4
Minimum Working Temperature
-65
Product Width
0.44
Qualified Hose Fittings
E series, Field Attachable, FC Series, Swage
Reinforcement Material
None
Sub Brand
Winner
Supplier Part Number
EN-6TW
Tube Material
PTFE
Product Weight
0.26 lbs

Related Documents

Product Questions & Answers (2)

Question by: Lynn D on Mar 23, 2026, 12:36 PM
hose is rated for chemical service, does that include compressor discharge lines too, or just liquid chemical transfer?
Answer by: Customer Support on Mar 25, 2026, 8:22 AM
Compressor discharge is actually one of the primary applications this hose was built for. The extruded PTFE tube material holds up against virtually all chemical exposures and handles the heat and pressure cycling that comes with discharge service. It's also rated to withstand vibration and impulsing, which makes it a solid fit for compressor lines where pulsation is a constant factor.
Question by: Dwayne W on Sep 27, 2025, 11:00 AM
If this is non-conductive, can I use it around electrical stuff without worryin' about a shock?
Answer by: Customer Support on Sep 28, 2025, 3:04 PM
Being non-conductive, this hose is suitable for applications where there's a risk of electrical interference, yes.
