Danfoss / Eaton Winner PTFE Reel

Description & Features

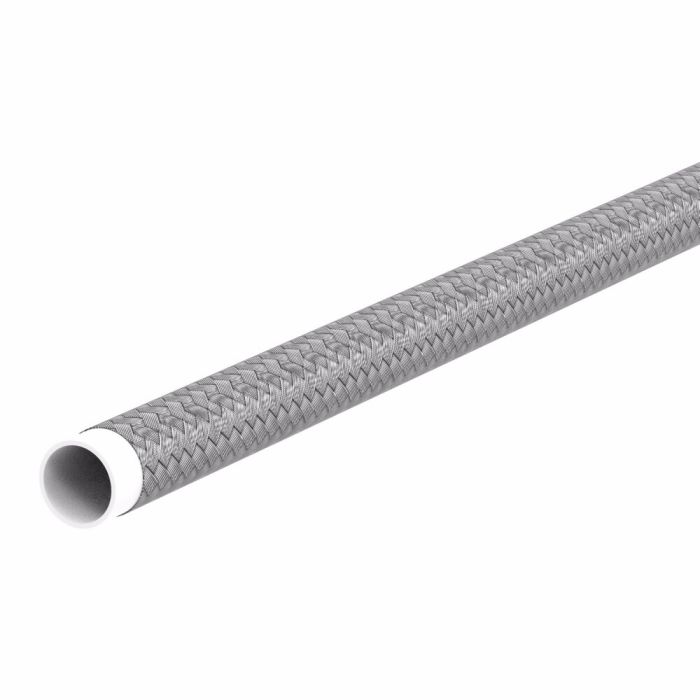

Constructed from extruded PTFE tube with a stainless steel braided cover, the Danfoss / Eaton Winner PTFE Reel is built for demanding chemical, compressor discharge, and steam transfer applications. The PTFE tube material provides broad chemical compatibility and resistance to degradation across a wide range of media, while the stainless steel reinforcement adds durability against vibration and impulse cycling, rated for 150,000 impulse cycles.

This -8 dash size hose carries SAE 100R14A and SAE 100R14B certifications and meets SAE J517 requirements, making it straightforward to specify for compliant installations. A minimum bend radius of 5.31 inches and a low-temperature rating of -65°F support flexible routing in both high-heat and cold-environment service. Compatible fittings include E Series, FC Series, and field-attachable configurations. Note that this hose is not recommended for steam-to-cold water cycling service.

SKU: EN-8TW250R

Supplier Part Number (MPN): EN-8TW250R

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MINO-20974X00339	Application Ideal for steam, compressor discharge and virtually all chemical applications. Not recommended for steam-cold water cycling.	Certifications SAE J517\|SAE 100R14A\|SAE 100R14B	Color Stainless Steel	Conductivity 13552	Construction Extruded with braided cover	Cover Material Stainless Steel	Dash Size -8	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Withstands vibration and impulsing\|Impervious to degradation\|Wide temperature range	ICC Hoses and Flexible Tubes	Impulse Cycle Life 150000 cycle	Language English	Minimum Bend Radius 5.31	Minimum Bend Radius 5.31	Minimum Working Temperature -65	Product Width 0.54	Qualified Hose Fittings E series, Field Attachable, FC Series	Reinforcement Material None	Sub Brand Winner	Supplier Part Number EN-8TW250R	Tube Material PTFE	Product Weight 0.38 lbs

Product Questions & Answers (2)

Question by: Billy M on May 22, 2025, 8:05 AM

Got a compressor discharge line running pretty hot and I need something that ain't gonna break down on me from the chemicals going through it. This PTFE reel rated for that kind of service?

Answer by: Customer Support on May 24, 2025, 6:36 AM

PTFE tube material handles a wide range of chemicals without degrading, and compressor discharge is one of the primary applications this hose is built for. The stainless steel braided cover adds durability under the vibration and impulse cycling that comes with compressor lines, and the hose is rated for 150,000 impulse cycles. That combination holds up well in hot, chemically aggressive service.

Question by: Ralph W on Feb 16, 2026, 12:25 PM

got a steam line that sees some vibration, is this PTFE hose built to handle that kind of shaking around?

Answer by: Customer Support on Feb 18, 2026, 11:02 AM

Built for vibration and impulse cycling, the stainless steel braided cover helps it hold up in rough service, and it is rated for 150,000 impulse cycles.
