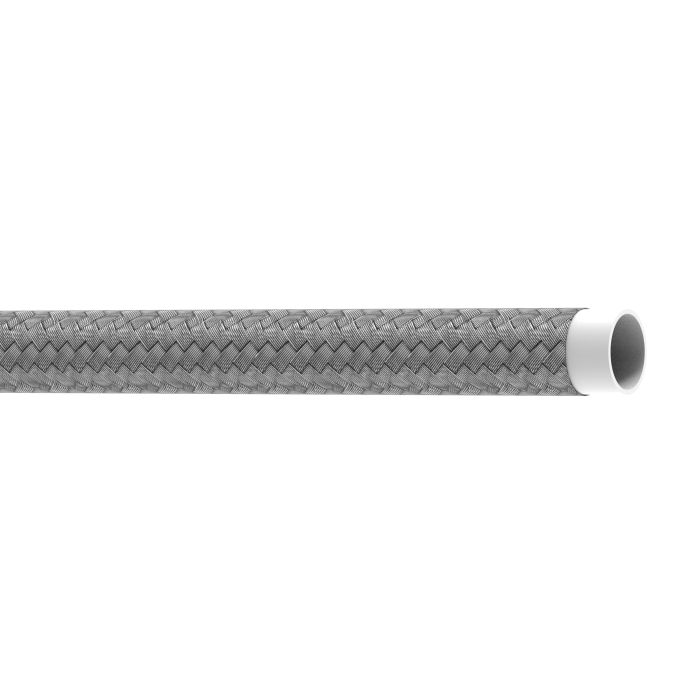

Hose PTFE Winner NON-CONDUCTIVE 100R14

Description & Features

This non-conductive PTFE 100R14 hose is part of the Winner by Danfoss / Eaton EN-TW Series. Constructed with an extruded PTFE tube and stainless steel braided cover, this Hose PTFE Winner NON-CONDUCTIVE 100R14 offers premium abrasion resistance and a wide temperature range, with a minimum working temperature of -65 degrees. It is suitable for applications involving steam, compressor discharge, and virtually all chemicals. However, it is not recommended for steam-cold water cycling.

The hose withstands vibration and impulsing and is impervious to degradation. It meets SAE 100R14A, SAE J517, and SAE 100R14B certifications and has been tested to 150,000 impulse cycles. It has a minimum bend radius of 5.31 inches. Compatible qualified hose fittings include E series, Field Attachable, and FC Series Swage.

SKU: EN-8TW500R

Supplier Part Number (MPN): EN-8TW500R

Specifications

Abrasion Resistance 28	Application Ideal for steam, compressor discharge and virtually all chemical applications. Not recommended for steam-cold water cycling.	Certifications SAE 100R14A\|SAE J517\|SAE 100R14B	Class WEB-ITEM	Color Stainless Steel	Conductivity 13552	Construction Extruded with braided cover	Cover Material Stainless Steel	Dash Size -8	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Withstands vibration and impulsing\|Impervious to degradation\|Wide temperature range	ICC Hoses and Flexible Tubes	Impulse Cycle Life 150000 cycle	Language English	Minimum Bend Radius 5.31	Minimum Bend Radius 5.31	Minimum Working Temperature -65	Product Width 0.54	Qualified Hose Fittings E series, Field Attachable, FC Series, Swage	Supplier Part Number EN-8TW500R	Tube Material PTFE	Product Weight 0.37 lbs

Product Questions & Answers (1)

Question by: Travis A on Apr 7, 2025, 3:28 PM

Hey, will this hose handle hot compressor discharge without breaking down on me?

Answer by: Customer Support on Apr 9, 2025, 10:20 AM

Yes, this hose is well-suited for compressor discharge applications. The PTFE tube construction makes it impervious to degradation, even under demanding conditions.
