Extra Heavy Duty Bilge-Drain-Live Well Hose, 1.13 Inch ID, Up To 95.00 PSI

Ask A Question

Description & Features

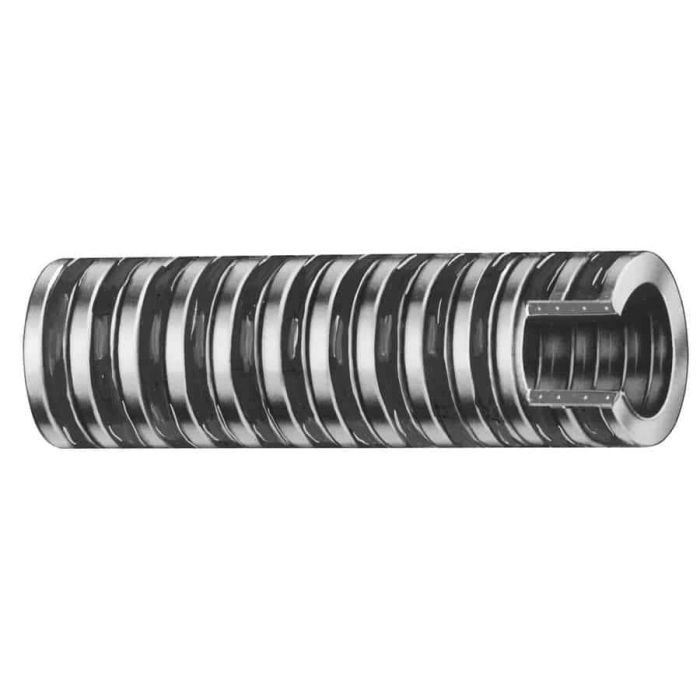

Constructed from smooth extra heavy wall vinyl with a clear body and black helix reinforcement, this hose is purpose-built for demanding marine fluid routing applications including bilge, live well, drain, and scupper lines. The all-clear design allows for visual flow monitoring without requiring cuffs at the connection points.

The Extra Heavy Duty Bilge-Drain-Live Well Hose, 1.13 Inch ID, Up To 95.00 PSI carries a 1.125-inch inner diameter and a 1.375-inch outer diameter, with a rated operating pressure of 95 PSI. Its temperature range spans 10°F to 140°F, supporting reliable use across a wide range of marine environments. Compatible with shank-type brass or stainless steel fittings secured with stainless steel T-bolt clamps, this hose combines flexibility with durability for heavy-duty installations. Available on a 50-foot reel.

SKU: 147-1186

Supplier Part Number (MPN): 147-1186

Alternate Part Numbers: C1FS88

Specifications

Brand
TRIDENT MARINE SYSTEMS
Cover Material
Clear Vinyl
grp Application Construction
Smooth Extra Heavy Wall Vinyl Hose, All Clear (see Thru) with Black Helix, Excellent Durability, Flexibility and Bend Radius For Extra Heavy-Duty Bilge, Live Well, Drain, Scupper Lines, and more, No Cuffs Required, Operating Temperatures 10 deg F to 140 d
grp Fittings
Shank Type (Brass, Stainless Steel)
grp Fittings Fitting Attachment Suggestions
Shank Type Fittings Attached with Stainless Steel T-bolt Clamps
Hose Color
Black/Clear
Hose Type
Heavy-Duty
Inside Diameter
1-1/8 in
Series
147 Series
Tube Material
Vinyl

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Ronnie H on Oct 29, 2025, 2:21 PM
got a 1-1/8 inch thru-hull fitting, is this hose gonna slip over it right or am i fighting it
Answer by: Customer Support on Oct 31, 2025, 6:52 AM
It matches a 1.125 inch inside diameter and is intended for shank type fittings like brass or stainless. It is also noted as no cuffs required, which helps when sliding it onto the fitting shank.
Question by: Phil M on Apr 25, 2025, 3:26 PM
hose is see-through right? trying to figure out if I can watch for flow without cutting into the line
Answer by: Customer Support on Apr 26, 2025, 3:51 PM
Clear vinyl construction runs the full length of the hose, so yes, you can visually monitor flow right through the wall. The black helix is structural and runs along the outside, but the body itself stays transparent. Works well for bilge and live well lines where checking for debris or flow interruption matters without having to disconnect anything.
