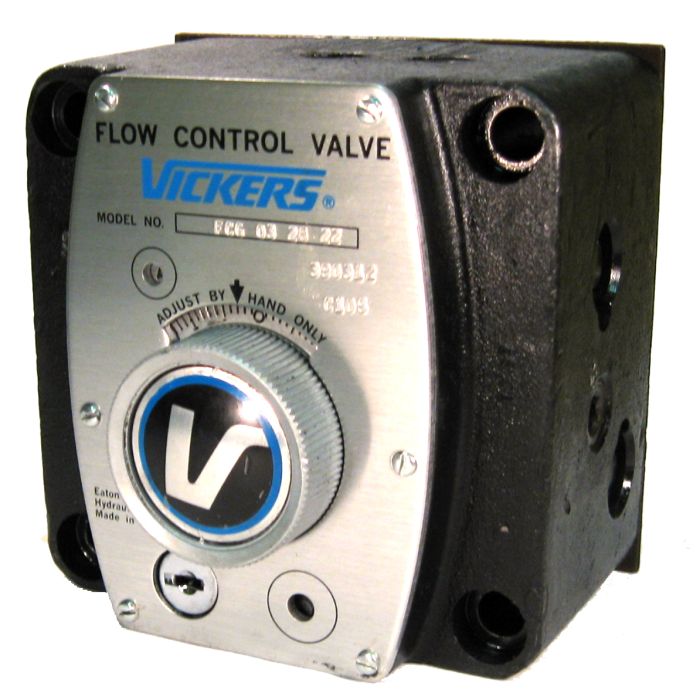

F(C)G-02/03 Series Pressure & Temperature Compensated Flow Control Valves, Up To 28 GPM Regulated

Description & Features

Application	Precise control of flow rate is obtained by rotating the dial. Maximum throttle openings may be limited by addition of spacers to the throttle shaft under the selector dial.
Available Options	Size -02 Models: Vickers Model FGM-02-20 (3/8 NPT) or FGM-02X-20 (1/2 NPT) sold separately. Size -03 Models: Vickers Part No. 681670 (Model FGM-03SZ-10) sold separately.
Features	Both pressure and temperature compensated to minimize flow variation resulting from changes in fluid pressure and temperature. 4-1/2 turns of dial from full closed to full open. Subplate mounted. Key lock is standard (2 keys are furnished with valve).
Maximum Flow Rate	Size -02 Models: 10 GPM. Size -03 Models: 28 GPM.
Maximum Knob Torque Required	Size -03 Models: 20 lb. in. @ 3000 PSI (Proportional to outlet pressure).
Maximum Operating Pressure	Size -02 Models: 3600 PSI. Size -03 Models: 3000 PSI.
Mounting Bolts	Size -02 Models: Standard mounting bolts are (4) 5/16-18 x 2 Grade 8 socket head capscrews (Vickers Bolt Kit BKFG-02-640), torqued to 305 lb. in. Size -03 Models: Standard mounting bolts are (4) 3/8-16 x 3 Grade 8 socket head capscrews (Vickers Bolt Kit 255645, BKFG-03-645), torqued to 350 lb. in. See Bolt Kits on
Recommended Filtration	ISO 4406 Cleanliness Level 19/17/14 or cleaner.

Products

Model Number	Part Number	Flow Range	Includes	Seal Material	Features	Price	Action
FCG-02-1500-50 F(C)G-02/03 Series Flow Control	420607	10 to 1500 in³/min	Reverse Flow Check	Nitrile	Superior moisture resistance\|Reliable fluid flow regulation\|Easy installation and maintenance

Product Questions & Answers (1)

Question by: Brent G on Oct 28, 2025, 11:08 AM

Hey, I'm looking at using one of these on a piece of equipment that runs pretty much all day. Will this valve hold up to continuous use?

Answer by: Customer Support on Oct 30, 2025, 10:23 AM

These valves are built with superior moisture resistance and designed for reliable fluid flow regulation, so they should be suitable for continuous use in demanding applications, assuming you stay within the pressure and flow ratings listed.
