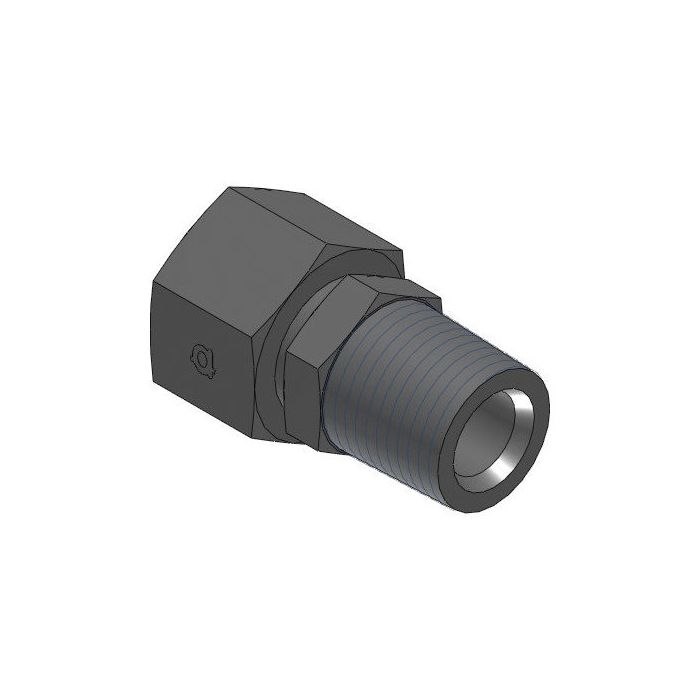

main product photo

F Din X Male Npt

Ask A Question

Description & Features

Constructed from steel in a straight configuration, this Adaptall America adapter connects a female DIN tube fitting (M14 x 1.5 thread, L08 size) on one end to a 1/4" male NPTF port on the other. The F Din X Male Npt is a reliable choice for hydraulic systems requiring a transition between metric DIN tube connections and NPT-threaded ports.

Key dimensional specs include a Ch1 wrench width of 14mm, Ch2 wrench width of 17mm, an L1 length of 41.5mm, and an L2 length of 15mm, providing consistent fitment in tight hydraulic assemblies and fluid power circuits.

SKU: 5307L-08-04

Supplier Part Number (MPN): 5307L-08-04

Specifications

Brand
adapt-all
Connection Size 1
8 mm
Connection Size 2
1/4 in
Connection Type
Female Metric Swivel, MNPT
Connection Type 1
Female DIN 24 deg Tube Swivel
Connection Type 2
Male NPT
Dimension Standards
ANSI B1.20.3, DIN 2353
Dimensions
41.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
5307 Series
Thread Size
1/4-18, M14x1.5

Product Questions & Answers (3)

Question by: Todd T on Mar 28, 2026, 9:19 AM
What size wrench do I need for this fitting?
Answer by: Customer Support on Mar 30, 2026, 6:55 AM
You'll need a 14mm wrench for the Ch1 side and a 17mm wrench for the Ch2 side.
Question by: Gary B on Jul 17, 2025, 8:41 AM
Got a hydraulic line coming off a metric DIN fitting and need to tie into a 1/4" NPT port on a manifold. this adapter gonna work for that?
Answer by: Customer Support on Jul 18, 2025, 3:38 PM
That's what this piece is built for. One end is a female DIN tube fitting with an M14 x 1.5 thread at L08 size, and the other end is a 1/4" male NPTF connection. Steel construction, straight configuration, so it drops right in without any angled offset. The wrench flats are 14mm on the DIN side and 17mm on the NPT side, so you've got good purchase on both ends when you're torquing it down.
Question by: Judy J on Feb 23, 2026, 1:35 PM
got a female DIN tube fitting thats M14 x 1.5, size L08. will this adapter get me over to a 1/4 npt port?
Answer by: Customer Support on Feb 24, 2026, 7:20 PM
For tying a metric DIN tube connection into an NPT threaded port, this adapter matches a female DIN tube end with M14 x 1.5 threads (L08) on one side and a 1/4 - 18 NPTF male on the other.
