F Din X Mbspp Es Seal

Description & Features

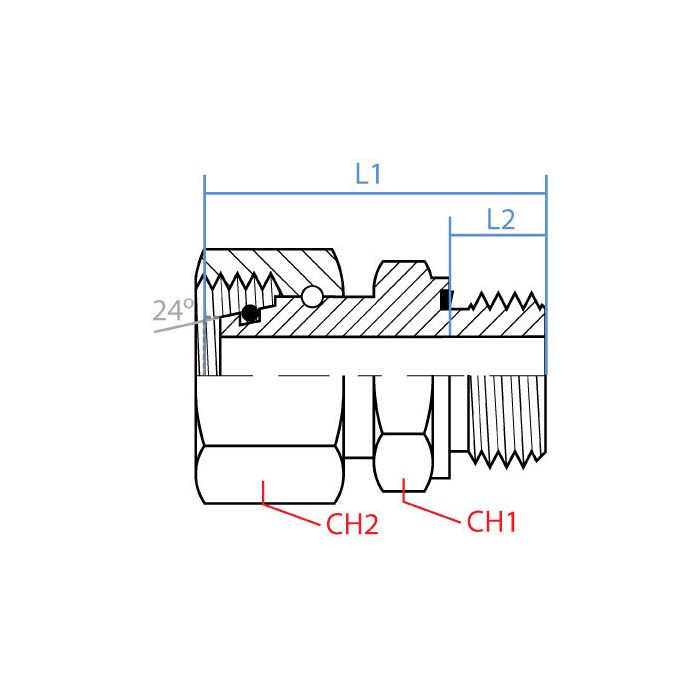

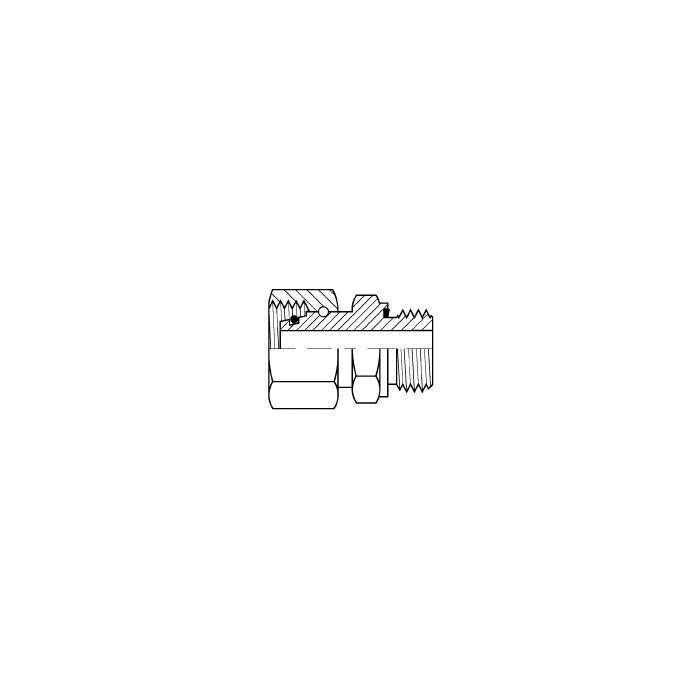

This straight steel adapter connects a female DIN tube fitting (M26 x 1.5 thread) on one side to a male BSPP port (G 3/4 - 14) on the other, making it a practical solution for transitioning between DIN and BSPP connection standards in hydraulic systems. The elastomeric seal (ES) design provides reliable sealing at the BSPP end without the need for additional sealing compounds or tape.

Manufactured by Adaptall, the F Din X Mbspp Es Seal is machined from steel for durability in demanding hydraulic service. The straight configuration keeps routing straightforward where space and alignment allow. With an L18 DIN side and a 3/4" BSPP male outlet, this adapter is well suited for equipment that incorporates both European DIN tube connections and BSPP-ported components.

SKU: 5302L-18-12

Supplier Part Number (MPN): 5302L-18-12

Specifications

Brand adapt-all	Additional Information Light-Duty	Connection Size 1 18 mm	Connection Size 2 3/4 in	Connection Type Female Metric Swivel, Male BSP	Connection Type 1 Female DIN 24 deg Tube Swivel	Connection Type 2 Male BSPP Elastomeric Seal	Dimension Standards BS 5200, DIN 2353	Dimensions 47 mm L	Finish Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Series 5302 Series	Thread Size M26x1.5 x 3/4-14

Product Questions & Answers (1)

Question by: Rod E on Nov 6, 2025, 4:52 PM

What size is that DIN tube side, the L18? Just want to make sure I'm ordering the right thing.

Answer by: Customer Support on Nov 8, 2025, 2:55 PM

That L18 sizing on the DIN side corresponds to an M26 x 1.5 thread.
