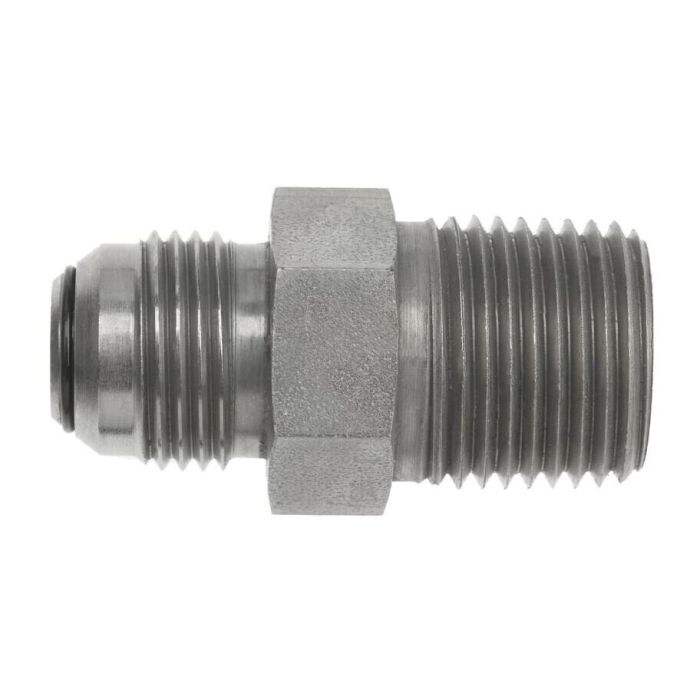

06FO-04MP STRAIGHT

Description & Features

Designed for durability and precision, the 06FO-04MP STRAIGHT fitting from Brennan Industries seamlessly connects hydraulic components. This fitting features a 3/8 inch tube outer diameter and a 1/4-18 NPTF thread, ensuring compatibility with various industrial systems. The fitting's hex size measures 0.625 inches, providing a secure grip during installation, while its overall length of 1.43 inches offers a compact profile suitable for tight spaces.

Constructed in adherence to SAE 37-degree standards, this fitting ensures reliable performance in demanding environments. The male connection type further enhances its versatility across multiple applications. Part of the F2404 series, this fitting is a dependable choice for maintaining the integrity of hydraulic systems.

SKU: F2404-06-04-O

Supplier Part Number (MPN): F2404-06-04-O

Specifications

Burst Ratio 4:1	Connection Size 1 3/8 in	Connection Size 2 1/4 in	Connection Type Male SAE ORB, MNPT	Connection Type 1 Male SAE O-ring Flare	Connection Type 2 Male 30 deg NPTF	Dimension Standards SAE J514/J476	Dimensions 1.43 in L	Fitting Type Connector	Hex Size 5/8 in	Material Steel	Material Construction 12L14 Steel/C1045 Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Series 2404 Series	Thread Size 1/4-18 x 9/16-18

Product Questions & Answers (1)

Question by: Brett F on Feb 9, 2026, 1:31 PM

Will this fitting work for connecting a 3/8 inch OD tube to a 1/4 inch NPTF thread?

Answer by: Customer Support on Feb 11, 2026, 9:54 AM

Yes, this straight fitting is designed to connect a 3/8 inch outer diameter tube to a 1/4-18 NPTF thread, making it suitable for connecting those two sizes.
