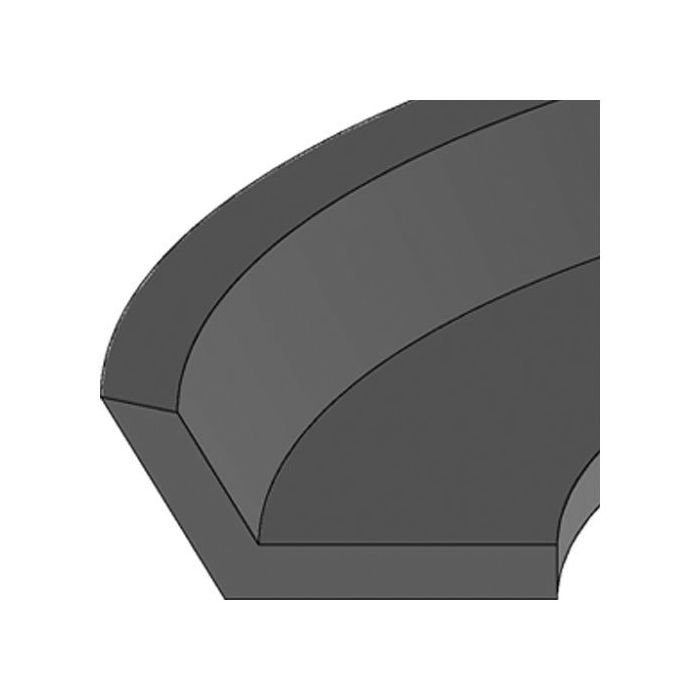

Cotton Fabric & Rubber Piston Cup, 1.50 Inch Bore, 0.50 Inch Height, 1/8 Inch Thick

Ask A Question

Description & Features

This Hercules Sealing Products piston cup is constructed from cotton fabric and rubber, designed for use in hydraulic cylinders and equipment.

This 1.50 inch bore piston cup is suitable for applications within a pressure range of 0 to 3000 PSI and a temperature range of -65° to 220°F. The Cotton Fabric & Rubber Piston Cup measures 0.50 inches in height and 1/8 inch in thickness.

SKU: 9150-000F

Supplier Part Number (MPN): 9150-000F

Alternate Part Numbers: C1CB75

Specifications

Brand
HERCULES® SEALING PRODUCTS
Dimensions
1/2 in H x 1/8 in THK
Material
Cotton Fabric/Rubber
Series
9000 Series

Similar Products

Model Number Bore Height Thickness (in) Hole Dia. Price Action
Cotton Fabric & Rubber Piston Cup, 1.25 Inch Bore, 0.44 Inch Height, 3/32 Inch Thick

9125-000F Fabric & Rubber Piston Cup

1.25

0.4375

3/32

Cotton Fabric & Rubber Piston Cup, 2.00 Inch Bore, 0.50 Inch Height, 1/8 Inch Thick

9200-000F Fabric & Rubber Piston Cup

2

0.5

1/8

Cotton Fabric & Rubber Piston Cup, 2.50 Inch Bore, 0.50 Inch Height, 1/8 Inch Thick

9250-000F Fabric & Rubber Piston Cup

2.5

0.5

1/8

Cotton Fabric & Rubber Piston Cup, 3.00 Inch Bore, 0.63 Inch Height, 5/32 Inch Thick

9300-000F Fabric & Rubber Piston Cup

3

0.625

5/32

Cotton Fabric & Rubber Piston Cup, 4.00 Inch Bore, 0.63 Inch Height, 5/32 Inch Thick

9400-000F Fabric & Rubber Piston Cup

4

0.625

5/32

Product Questions & Answers (2)

Question by: Pete M on Dec 11, 2025, 3:04 PM
what's the pressure rating on these cups, and will they hold up in a system running close to 3000 PSI?
Answer by: Customer Support on Dec 13, 2025, 6:41 AM
Rated for 0 to 3000 PSI, so running near the top of that range is within spec. The cotton fabric and rubber construction handles that load without issue in standard hydraulic piston applications. Just make sure your bore is a true 1.50 inch fit and you're in good shape.
Question by: Troy H on Oct 24, 2025, 9:24 PM
What's the highest temperature this piston cup can handle?
Answer by: Customer Support on Oct 26, 2025, 4:15 PM
This cup is rated to handle temperatures up to 220 degrees Fahrenheit, and as low as -65 degrees.
