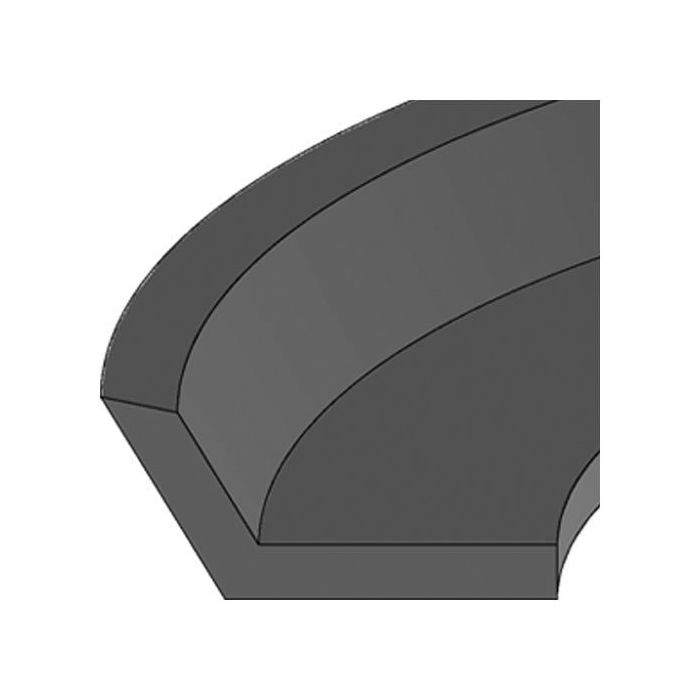

Cotton Fabric & Rubber Piston Cup, 3.00 Inch Bore, 0.63 Inch Height, 5/32 Inch Thick

Description & Features

Constructed from cotton fabric and rubber, this piston cup is designed for hydraulic cylinder applications requiring reliable sealing across a broad range of conditions. It carries a rated pressure range of 0 to 3000 PSI and operates within a temperature range of -65° to 220°F, making it suitable for demanding industrial environments.

The Cotton Fabric & Rubber Piston Cup, 3.00 Inch Bore, 0.63 Inch Height, 5/32 Inch Thick is manufactured by Hercules Sealing Products and listed under catalog number C1CC52. With a 3.00-inch bore, 0.625-inch height, and 5/32-inch wall thickness, it fits standard hydraulic cylinder configurations where dimensional accuracy is critical to sealing performance.

SKU: 9300-000F

Supplier Part Number (MPN): 9300-000F

Alternate Part Numbers: C1CC52

Specifications

Bore 3	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Height 0.63	Supplier Part Number 9300-000F	Thickness (in) 5/32	Alternate Part Numbers Alternate Part Number C1CC52	Product Weight 0.09 lbs

Similar Products

Model Number	Bore	Height	Thickness (in)
9125-000F Fabric & Rubber Piston Cup	1.25	0.4375	3/32
9150-000F Fabric & Rubber Piston Cup	1.5	0.5	1/8
9200-000F Fabric & Rubber Piston Cup	2	0.5	1/8
9250-000F Fabric & Rubber Piston Cup	2.5	0.5	1/8
9300-000F Fabric & Rubber Piston Cup	3	0.625	5/32
9400-000F Fabric & Rubber Piston Cup	4	0.625	5/32

Product Questions & Answers (1)

Question by: Melvin M on Aug 16, 2025, 9:13 AM

got a 3 inch bore cylinder that needs a new piston cup - this one the right thickness?

Answer by: Customer Support on Aug 17, 2025, 6:31 PM

At 5/32 inch thick, this cotton fabric and rubber piston cup matches standard dimensions for most 3.00 inch bore hydraulic cylinders. The 0.63 inch height provides proper sealing contact while allowing smooth piston movement during operation.
