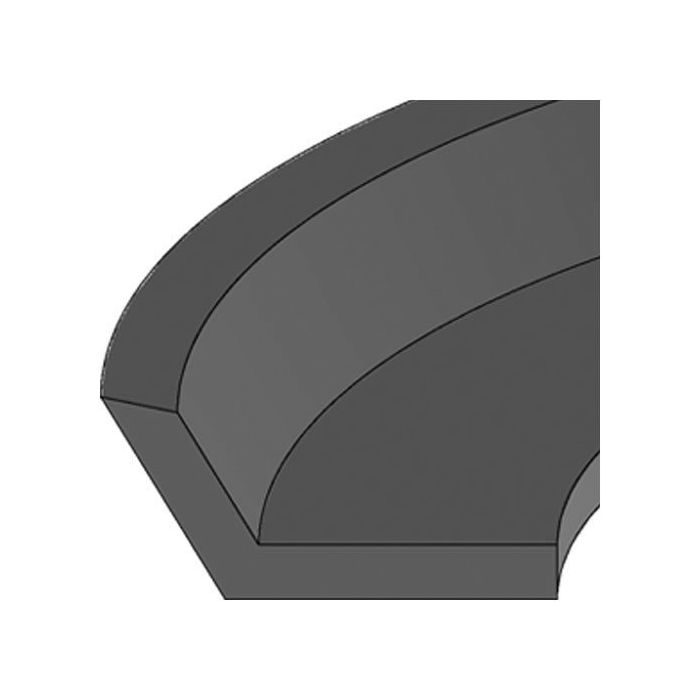

Cotton Fabric & Rubber Piston Cup, 4.00 Inch Bore, 0.63 Inch Height, 5/32 Inch Thick

Ask A Question

Description & Features

This Hercules Sealing Products piston cup is manufactured from cotton fabric and rubber for dependable sealing performance in hydraulic cylinders. It is suitable for use in systems with pressures from 0 to 3000 PSI and temperatures ranging from -65° to 220°F.

This 4.00-inch bore Cotton Fabric & Rubber Piston Cup has a height of 0.63 inches and a thickness of 5/32 inch.

SKU: 9400-000F

Supplier Part Number (MPN): 9400-000F

Alternate Part Numbers: C1CC63

Specifications

Brand
HERCULES® SEALING PRODUCTS
Dimensions
0.625 in H x 0.156 in THK
Material
Cotton Fabric/Rubber
Series
9000 Series

Similar Products

Model Number Bore Height Thickness (in) Hole Dia. Price Action
Cotton Fabric & Rubber Piston Cup, 1.25 Inch Bore, 0.44 Inch Height, 3/32 Inch Thick

9125-000F Fabric & Rubber Piston Cup

1.25

0.4375

3/32

Cotton Fabric & Rubber Piston Cup, 1.50 Inch Bore, 0.50 Inch Height, 1/8 Inch Thick

9150-000F Fabric & Rubber Piston Cup

1.5

0.5

1/8

Cotton Fabric & Rubber Piston Cup, 2.00 Inch Bore, 0.50 Inch Height, 1/8 Inch Thick

9200-000F Fabric & Rubber Piston Cup

2

0.5

1/8

Cotton Fabric & Rubber Piston Cup, 2.50 Inch Bore, 0.50 Inch Height, 1/8 Inch Thick

9250-000F Fabric & Rubber Piston Cup

2.5

0.5

1/8

Cotton Fabric & Rubber Piston Cup, 3.00 Inch Bore, 0.63 Inch Height, 5/32 Inch Thick

9300-000F Fabric & Rubber Piston Cup

3

0.625

5/32

Product Questions & Answers (2)

Question by: Larry S on Apr 27, 2025, 9:39 PM
Got a 4-inch bore cylinder that needs a new piston cup, this one rated to handle 3000 PSI?
Answer by: Customer Support on Apr 29, 2025, 2:23 PM
Rated from 0 to 3000 PSI, so yes, that pressure range covers most standard hydraulic cylinder applications. The cup measures 4.00 inches in bore, 0.63 inches tall, and 5/32 inch thick, so just make sure those dimensions line up with your cylinder before ordering.
Question by: Dale M on Sep 5, 2025, 12:56 PM
Reckon this piston cup will hold up in a hydraulic system pushing 2800 PSI?
Answer by: Customer Support on Sep 7, 2025, 7:39 AM
With a pressure range from 0 to 3000 PSI, this Hercules Sealing Products piston cup is suitable for systems operating at 2800 PSI.
