Aeroquip Crimp FittingS - Code

Description & Features

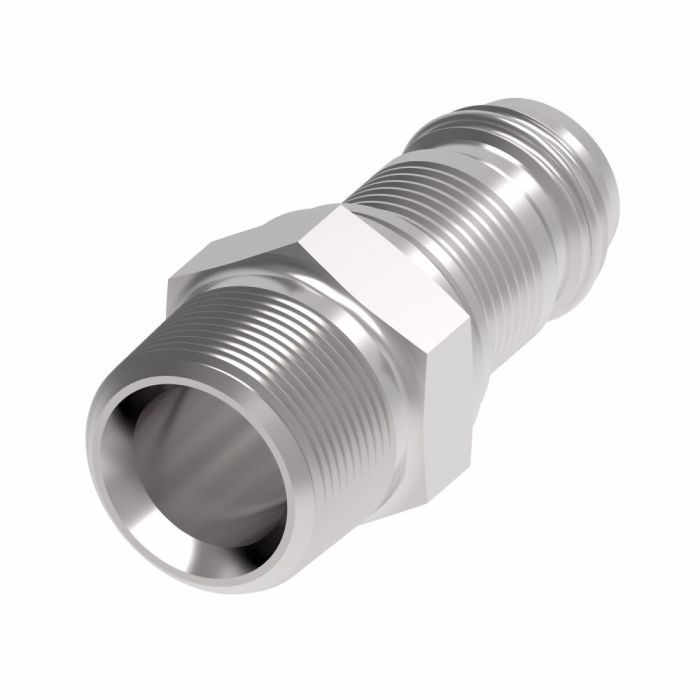

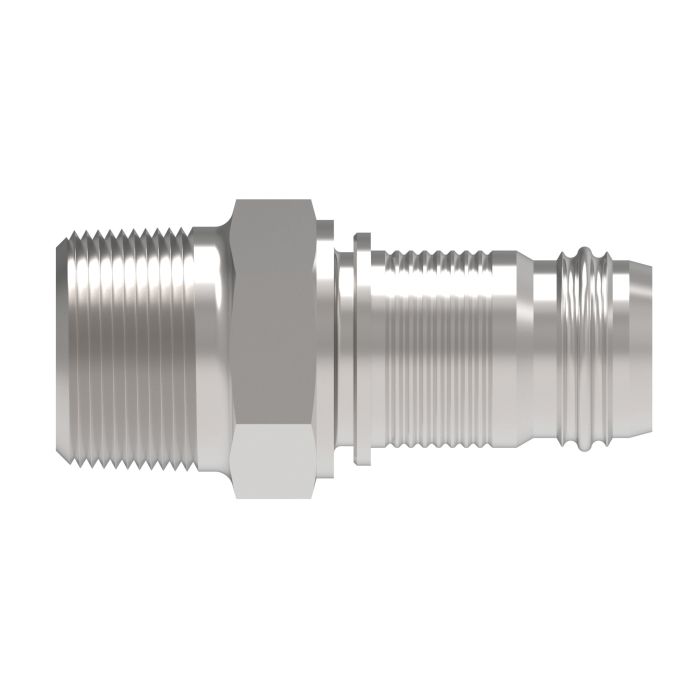

Constructed from stainless steel, this 1-inch NPTF male nipple fitting is designed for use with -16 dash size hose assemblies in demanding hydraulic applications. The FC1349-1616-259 features Dura-Kote plating, which provides a notable layer of corrosion resistance suited to environments where exposure to moisture or aggressive media is a concern.

Part of the Aeroquip Crimp Fittings - Code series by Aeroquip, this nipple is system-engineered to support extended hose assembly service life and reliable performance under sustained operating conditions. The 1.38-inch product width and crimp-style end connection make it compatible with standard hose termination equipment. Thread sealant is included, supporting a secure, leak-resistant connection at the NPTF interface.

SKU: FC1349-1616-259

Supplier Part Number (MPN): FC1349-1616-259

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 2.773 in	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Hose, MNPT	Connection Type 1 Hose	Connection Type 2 Male NPTF	Construction Style Crimp	Cut-Off Factor 4.31 in	Dimensions 0.81 in ID x 2.77 in L	End Gender 1 Male	End Size 1 1 in	Finish Passivated	Fitting Type Nipple	For Use With FC363, FC364 and FC563 Series PTFE Hoses	Hex Size 1-3/8 in	Hose Dash Size 16	Inside Diameter 0.81 in	Material Stainless Steel	Material Construction 316 Stainless Steel	Maximum Operating Pressure 4000 psi	Operating Temperature -65	Series FC1349 Series	Thread Sealant With Thread Sealant	Thread Size 1-11-1/2

Similar Products

Model Number	Connection Size 1	Connection Size 2	Hose Dash Size
FC1349-2020S Steel Flat Crimp NPT Fitting	1-1/4 in	1-1/4 in	20
FC1349-1212S Steel Flat Crimp NPT Fitting	3/4 in	3/4 in	12
FC1349-0808-259	1/2 in	1/2 in	08
FC1349-1212-259	3/4 in	3/4 in	12
FC1349-2020-259 Stainless NPT Flat Crimp Fitting	1-1/4 in	1-1/4 in	20
