DANFOSS / EATON ADPTRS/TUBE FTGS - CO

Ask A Question

Description & Features

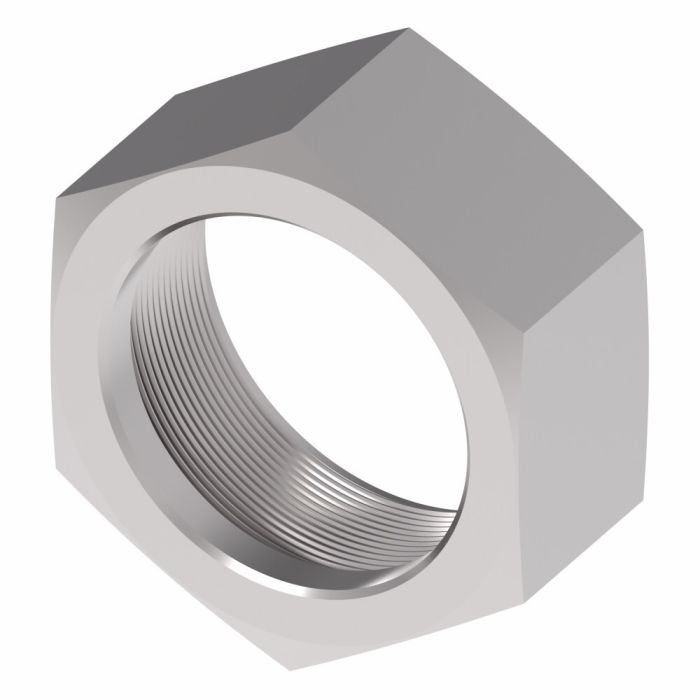

Crafted with precision, the Eaton Aeroquip swivel nut from the FC2326 Series offers exceptional durability and versatility, suitable for demanding industrial applications. Constructed from robust carbon steel, this nut is enhanced with a zinc clear trivalent chromate finish, ensuring superior resistance to corrosion. Its Dura-Kote plating further elevates protection, surpassing standard SAE compliance and allowing for higher operating pressures.

With a wide selection of styles available, the Eaton Aeroquip swivel nut provides exceptional design flexibility, catering to various hydraulic system configurations. Certified under SAE 520110, this product ensures reliability and performance. Measuring a compact width of 0.69 inches, it is designed for efficient integration into complex assemblies, maintaining a sleek and effective profile.

SKU: FC2326-04S

Supplier Part Number (MPN): FC2326-04S

Alternate Part Numbers: C1EP94

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female Braze, Female ORFS
Connection Type 1
Female ORFS
Connection Type 2
Female Braze
Dimension Standards
SAE 520110/J1453
Dimensions
0.58 in L
Finish
Zinc Clear Trivalent Chromate
Fitting Type
Nut
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Series
FC2326 Series
Thread Size
9/16-18
Tube OD
1/4 in

Product Questions & Answers (2)

Question by: Bobby R on Feb 24, 2026, 6:59 AM
got a tight spot on a manifold, how wide is this swivel nut?
Answer by: Customer Support on Feb 26, 2026, 6:35 AM
For clearance planning, the listed product width is 0.69 inches, so it stays pretty compact in crowded assemblies.
Question by: Terry T on Sep 7, 2025, 9:07 PM
what's the finish on this swivel nut, and does it hold up decent in wet or dirty environments?
Answer by: Customer Support on Sep 9, 2025, 6:05 AM
Zinc clear trivalent chromate is the finish, and it's backed by Dura-Kote plating on top of that. That combination gives it corrosion resistance that goes beyond standard SAE requirements, so it's built to handle conditions where moisture and grime are part of the everyday routine.
