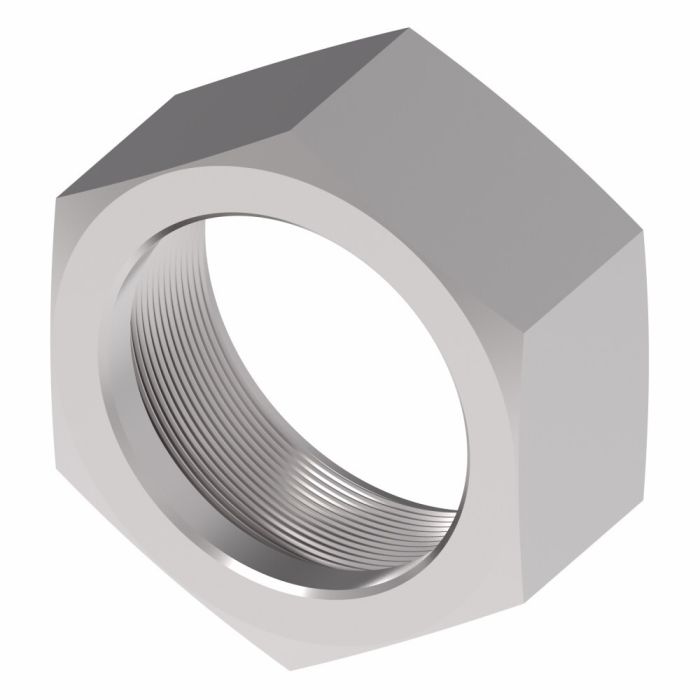

Danfoss / Eaton ORS Tube BRAZE Nut

Ask A Question

Description & Features

Part of the Aeroquip FC2326 Series, this carbon steel swivel nut is designed for ORS tube braze connections in hydraulic systems requiring reliable, leak-resistant fittings. The Danfoss / Eaton ORS Tube Braze Nut features a nickel finish applied through Dura-Kote plating, providing strong corrosion resistance suited to demanding industrial environments.

Manufactured to support operating pressures above SAE standards, this nut offers a dependable connection option across a wide range of hydraulic circuit configurations. The FC2326 Series spans hundreds of styles, giving engineers and technicians broad compatibility flexibility when sourcing components for both new builds and maintenance applications.

SKU: FC2326-20S

Supplier Part Number (MPN): FC2326-20S

Alternate Part Numbers: C1EU55

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Female Braze, Female ORFS
Connection Type 1
Female ORFS
Connection Type 2
Female Braze
Dimension Standards
SAE 520110/J1453
Dimensions
1.1 in L
Finish
Zinc Clear Trivalent Chromate
Fitting Type
Nut
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Series
FC2326 Series
Thread Size
1-11/16-12

Product Questions & Answers (1)

Question by: Glen C on Jun 13, 2025, 8:39 PM
Will this nut work with standard ORS fittings, or does it need something special?
Answer by: Customer Support on Jun 15, 2025, 6:40 AM
This swivel nut is specifically designed for ORS tube braze connections, so it's made to work within that system. You shouldn't need anything beyond standard ORS setups.
