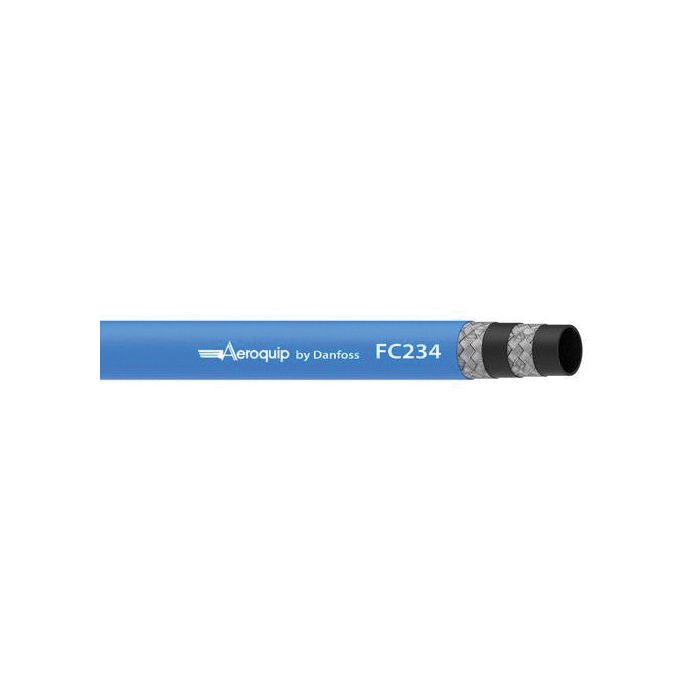

AEROQUIP CUT LENGTH HOSE 150FT

Description & Features

This AEROQUIP CUT LENGTH HOSE is designed for hydraulic applications requiring flexibility and durability. Constructed with a 2-ply braid and an elastomer cover, this hose offers standard abrasion resistance and conductive properties.

The hose is made with brass-plated steel wire reinforcement and an elastomer tube, ensuring reliable performance across a range of temperatures, down to a minimum working temperature of -40 degrees. It is certified to ABS and SAE J1527A1 standards and compliant with MSHA Approved, USCG, and DNV regulations. With a -16 dash size and a 3.5-inch minimum bend radius, this AEROQUIP CUT LENGTH HOSE is suitable for reusable barrel field crimp fittings.

SKU: FC234-16-18000

Supplier Part Number (MPN): FC234-16-18000

Specifications

Brand Aeroquip® by Danfoss	Abrasion Resistance Standard	Color Blue	Conditional Temp Range LT 100C Biodiesel upto B20	Conductivity Conductive	Construction 2-Wire Braided	Cover Material Chlorinated Polyethylene	Dash Size 16	Domestic/Import Domestic	Hose Type Braided, Conductive	Impulse Cycle 1200000	Lay Line Style Inkjet	Nominal Size #16	Package Form Cut Length	Qualified Hose Fittings Reusable	Reinforcement Material Brass-Plated Steel Wire	Series FC234 Series	Tube Material Chlorinated Polyethylene

Product Questions & Answers (1)

Question by: Roy C on Oct 7, 2025, 8:49 AM

What kind of fittings work with this hose, specifically?

Answer by: Customer Support on Oct 9, 2025, 6:20 AM

Reusable barrel field crimp fittings are qualified for use with this Aeroquip cut length hose.
