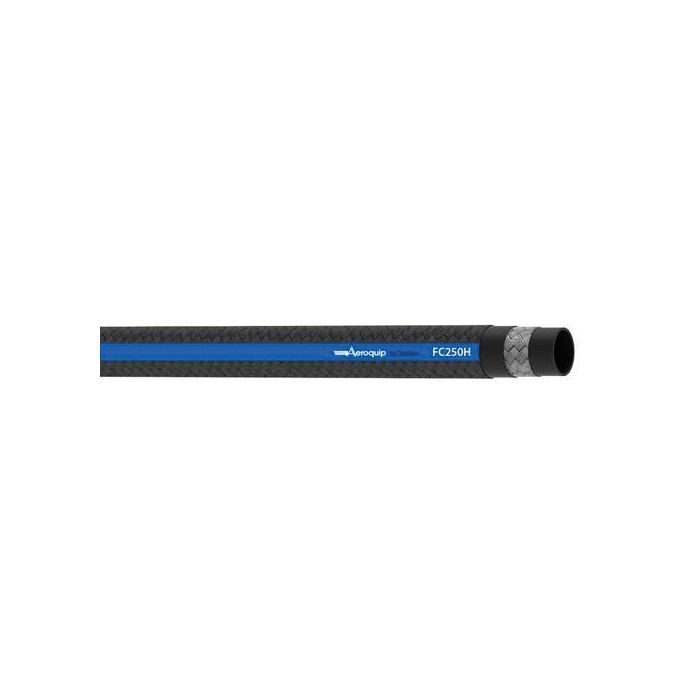

Hose, R5 High Temp

Description & Features

Designed for elevated-temperature hydraulic environments, this hose from Danfoss Power Solutions (Aeroquip) is built to the SAE R5 specification, which provides reinforced construction suitable for medium-pressure hydraulic fluid conveyance. The R5 rating indicates a single fiber braid reinforcement layer, making it appropriate for return and suction line service where thermal resistance is a priority.

The high-temperature designation reflects a compound formulation capable of maintaining flexibility and structural integrity under sustained heat exposure, a practical consideration in equipment where underhood or high-cycle conditions are common. This hose is well-suited for use in mobile hydraulic equipment, industrial machinery, and power transmission systems requiring reliable fluid handling under thermal stress.

SKU: FC250H-08RL

Supplier Part Number (MPN): FC250H-08RL

Alternate Part Numbers: FC250H-08

Specifications

Brand Aeroquip® by Danfoss	Abrasion Resistance Premium	Color Black	Conditional Temp Range Air Not to Exceed 250 deg F	Construction 1-Wire Braided	Cover Material Polyester	Domestic/Import Domestic	Hose Type Braided, Conductive	Impulse Cycle 150000	Inside Diameter 0.41 in	Lay Line Style Transfer Tape	Nominal Size #08	Package Form Reel	Qualified Hose Fittings Crimp	Reinforcement Material Brass-Plated Steel Wire	Series FC250H Series	Tube Material Chlorinated Polyethylene

Product Questions & Answers (1)

Question by: Darryl H on Mar 18, 2026, 3:51 PM

How hot can this R5 hose get without failing on me?

Answer by: Customer Support on Mar 20, 2026, 8:05 AM

This hose is designed for elevated-temperature hydraulic environments, so it should hold up well in underhood or high-cycle conditions where thermal stress is a concern.
