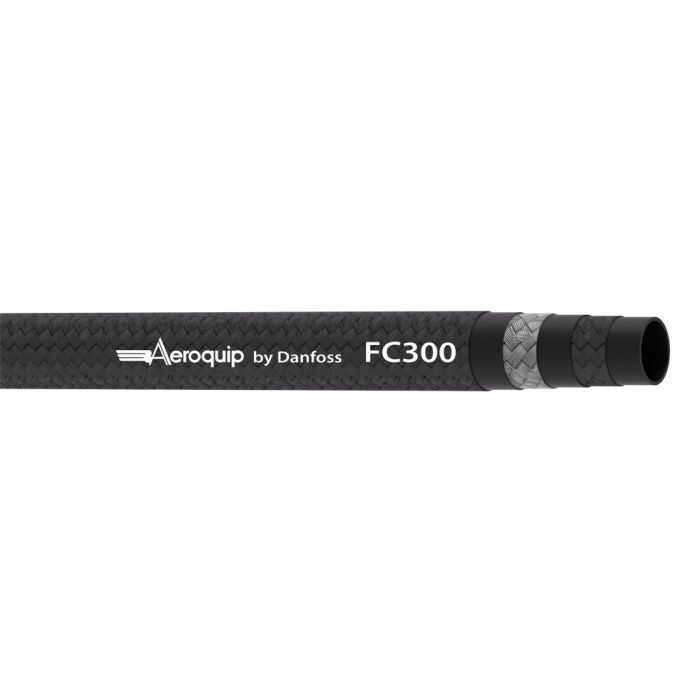

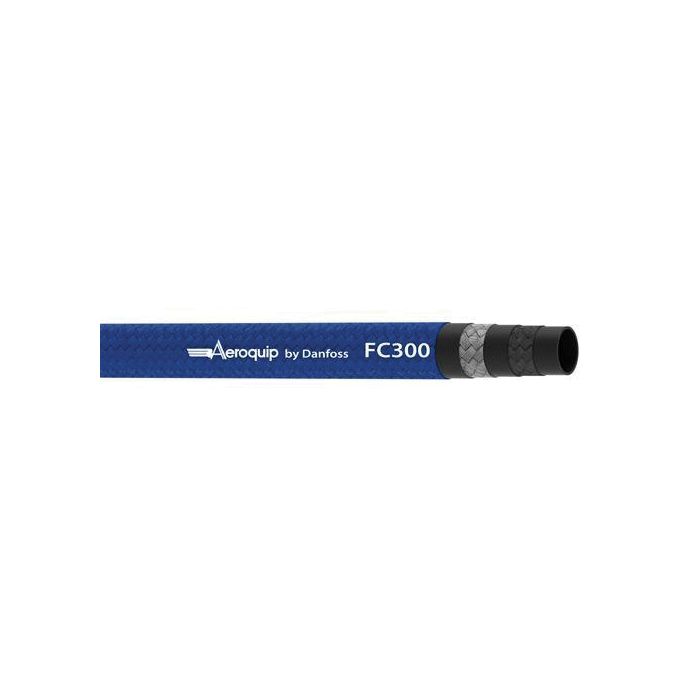

Aeroquip FC300-04 50 Foot Piece

Description & Features

This Aeroquip FC300-04 hose is designed for hydraulic applications requiring premium abrasion resistance. Constructed with a conductive elastomer tube and a polyester cover, this hose features a 1-ply braid reinforcement of polyester and wire.

The Aeroquip FC300-04 50 Foot Piece meets SAE J1402, SAE 100R5, SAE J1019, and ABS certifications, and complies with USCG, DNV, and DOT FMVSS 106 standards. It has a -4 dash size, a minimum bend radius of 3 inches, and operates in temperatures from -55 degrees Fahrenheit. This blue hose is compatible with reusable barrel field crimp fittings and features an ink wheel lay line style.

SKU: FC300-04-06000

Supplier Part Number (MPN): FC300-04-06000

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MINO-00015X10612	Certifications SAE J1402\|SAE 100R5\|SAE J1019\|ABS	Class WEB-ITEM	Color Blue	Compliances USCG\|DNV\|DOT FMVSS 106	Conductivity 30	Construction 1 Ply Braid	Cover Material Polyester	Dash Size -4	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Wheel	Minimum Bend Radius 3	Minimum Bend Radius 3	Minimum Working Temperature -55	Product Width 0.52	Qualified Hose Fittings Reusable Barrel Field Crimp	Reinforcement Material Polyester and Wire	Supplier Part Number FC300-04-06000	Tube Material Elastomer	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Ronnie B on Feb 3, 2026, 7:48 AM

What's the temp range on this hose?

Answer by: Customer Support on Feb 5, 2026, 6:16 AM

This Aeroquip FC300-04 hose is rated for temperatures as low as -55 degrees Fahrenheit.
