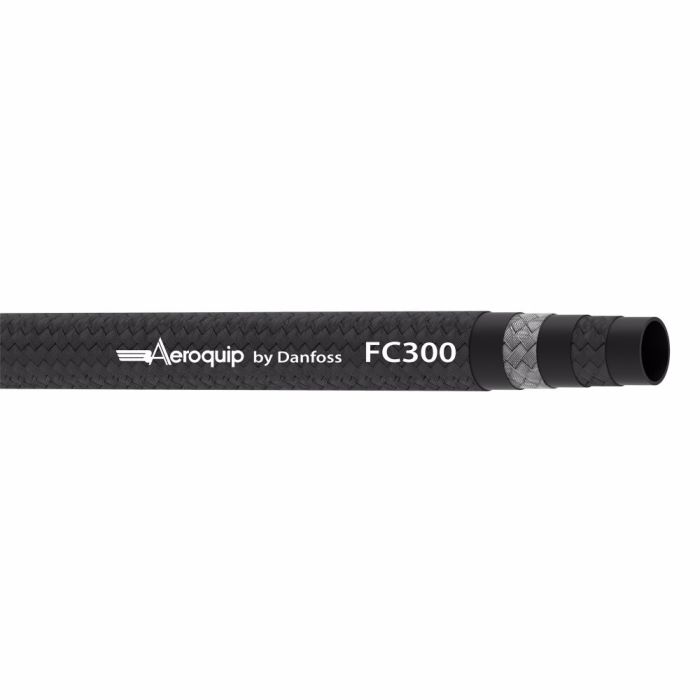

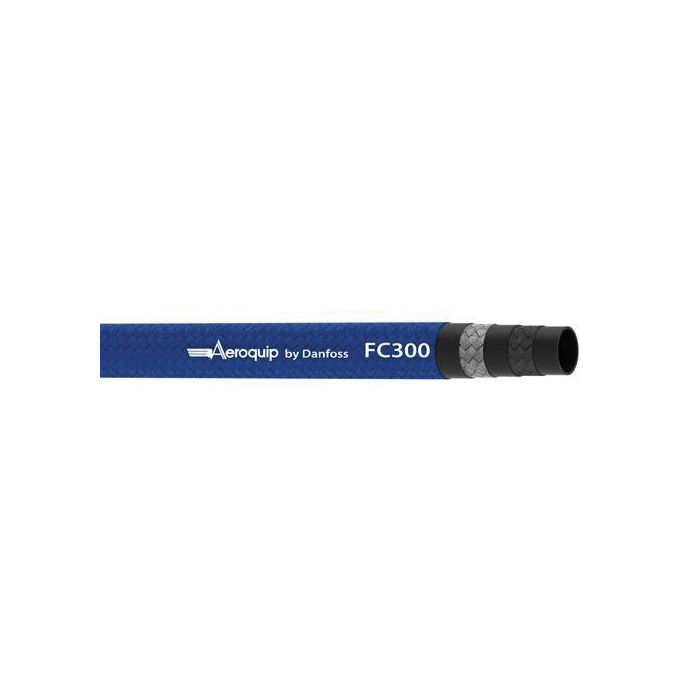

Aeroquip FC300-20 50 Foot Piece

Description & Features

Experience reliable performance with this premium abrasion-resistant hydraulic hose. Designed with a robust construction featuring a 1-ply braid, the Aeroquip FC300-20 50 Foot Piece is built to withstand demanding industrial environments. Its durable polyester cover and conductive elastomer tube ensure efficient operation under varying temperatures, ranging from -55 degrees Celsius and above. Additionally, this hose is compliant with a wide array of standards, including SAE 100R5, SAE J1402, and SAE J1019, making it suitable for diverse applications.

The Aeroquip FC300-20 hose features a minimum bend radius of 9 inches and a 1.5-inch width, providing flexibility and ease of installation in tight spaces. Qualified for use with reusable barrel field crimp fittings, this product ensures secure connections and streamlined maintenance.

SKU: FC300-20-06000

Supplier Part Number (MPN): FC300-20-06000

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MINO-00015X10630	Certifications SAE 100R5\|SAE J1402\|SAE J1019\|ABS	Class WEB-ITEM	Color Blue	Compliances USCG\|DNV\|DOT FMVSS 106	Conductivity 30	Construction 1 Ply Braid	Cover Material Polyester	Dash Size -20	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Wheel	Minimum Bend Radius 9	Minimum Bend Radius 9	Minimum Working Temperature -55	Product Width 1.50	Qualified Hose Fittings Reusable Barrel Field Crimp	Reinforcement Material Polyester and Wire	Supplier Part Number FC300-20-06000	Tube Material Elastomer	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Gene H on Sep 24, 2025, 1:23 PM

So, this hose is okay to use with field crimp fittings, right? Just wanna make sure I'm readin' it right.

Answer by: Customer Support on Sep 26, 2025, 6:42 AM

Yes, this hose is qualified for use with reusable barrel field crimp fittings, ensuring secure connections and easier maintenance.
