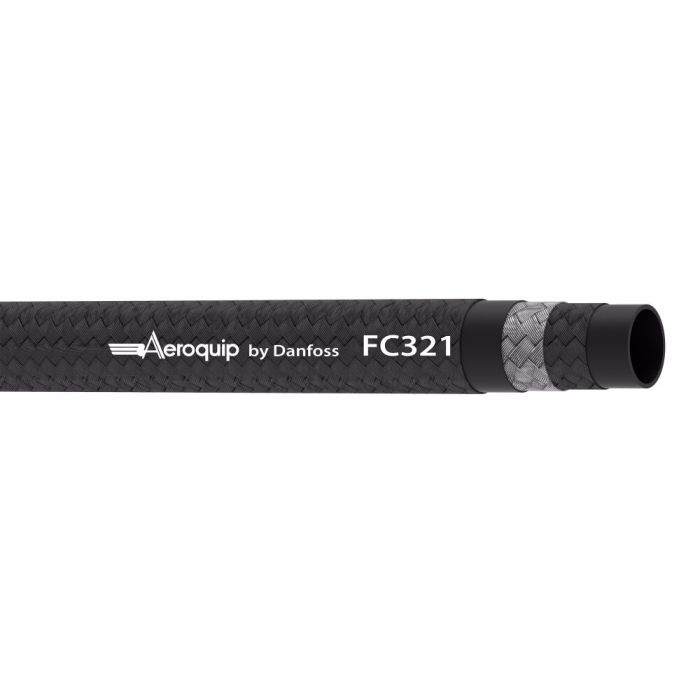

Aeroquip LPG Hose 19 ID SS

Description & Features

Designed for butane-propane service on both mobile and stationary equipment, this -4 dash size hose features a synthetic rubber tube, polyester and stainless steel wire reinforcement, and a polyester impregnated cover. The 2-ply braid construction supports a rated impulse cycle life of 2,000,000 cycles, and the hose is rated for service down to -40°F with a minimum bend radius of 1.5 inches.

The Aeroquip LPG Hose 19 ID SS carries a UL Listing (MH6044), making it suitable for regulated fuel applications where certification is a purchasing requirement. The abrasion-resistant cover and high-temperature tolerance make it a practical choice across a range of fuel hose applications where a single hose type needs to serve multiple fuel options.

SKU: FC321-04

Supplier Part Number (MPN): FC321-04

Specifications

Brand Aeroquip® by Danfoss	Abrasion Resistance Standard	Color Black	Construction 1-Wire Braided	Cover Material Polyester	Cover Style Impregnated	Dash Size 04	Hose Type Braided, Conductive	Impulse Cycle 2000000	Impulse Cycle Life 2000000	Inside Diameter 3/16 in	Lay Line Style Ink Wheel	Nominal Size #04	Package Form Bulk	Qualified Hose Fittings Crimp	Reinforcement 2-Ply Braided	Reinforcement Material Brass-Plated Steel Wire	Resistance Abrasion	Series FC321 Series	Tube Material Nitrile

Product Questions & Answers (3)

Question by: Dale W on Jan 25, 2026, 11:58 AM

Does this hose actually hold up to both butane and propane, or is it really just meant for one of 'em?

Answer by: Customer Support on Jan 27, 2026, 6:38 AM

Built to handle both fuels on the same line, which is part of what makes it useful when you're running equipment that doesn't always use the same fuel source. The synthetic rubber tube and stainless steel wire reinforcement are what carry the load there, and the polyester impregnated cover gives it solid abrasion resistance on top of that. One hose covering multiple fuel options means less inventory to keep track of and fewer compatibility headaches.

Question by: Rick S on May 16, 2025, 9:10 AM

Will this hose hold up to being bent some? Need to snake it around a piece of equipment.

Answer by: Customer Support on May 17, 2025, 10:52 AM

It can handle a bend radius down to 1.5 inches without kinking or damage. Just keep that in mind when routing it.

Question by: Curt S on Feb 17, 2026, 4:14 PM

got a tight spot to route fuel hose, how sharp can this -4 line bend without kinkin it

Answer by: Customer Support on Feb 19, 2026, 6:45 AM

For routing, the minimum bend radius is 1.5 inches. Keeping bends at or above that radius helps it hold shape without kinking.
