Description & Features

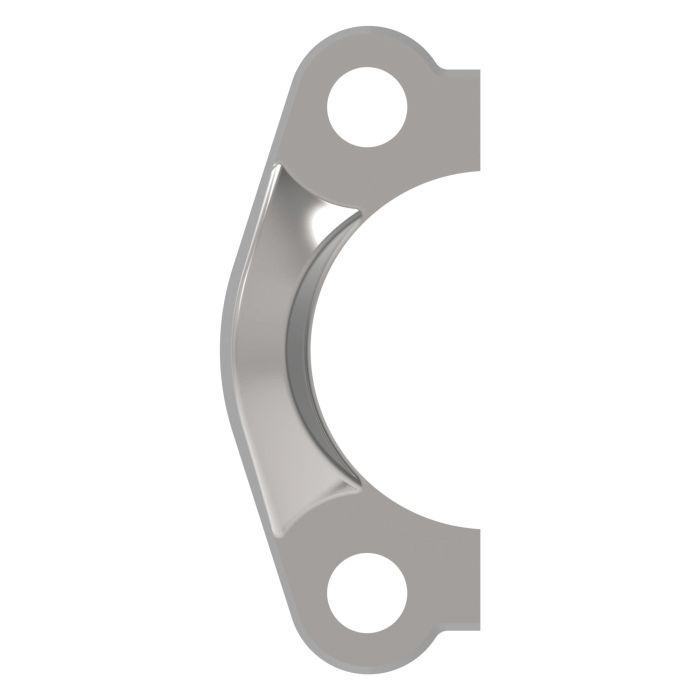

Constructed from ductile iron with Dura-Kote plating, this Eaton Aeroquip FC3425 Series flange half delivers reliable corrosion resistance in demanding hydraulic environments. The Dura-Kote finish provides a durable protective layer suited to industrial applications where moisture and contamination exposure are common concerns.

As part of the FC3425 Series, this flange half is engineered to perform at operating pressures above standard SAE ratings, offering greater margin in high-pressure hydraulic circuit assembly. The Aeroquip flange series encompasses hundreds of styles, providing broad design flexibility for varied connection configurations. At 2.06 inches in width, this Other, flange is a compact component suited for integration into tight hydraulic assemblies.

SKU: FC3425-32-449

Supplier Part Number (MPN): FC3425-32-449

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
2 in
Connection Type
Flanged
Connection Type 1
SAE Code 62 Flange
Dimension Standards
SAE J518
Domestic/Import
Import
Durometer
90
Finish
Dura-Kote™
Fitting Type
Flange
Material
Steel
Material Construction
Carbon Steel
Operating Temperature
-40 to 250 deg F
Series
FC3425 Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (1)

Question by: Kurt J on Feb 26, 2026, 7:20 PM
What's the material on this flange half, and is the coating gonna hold up in a wet or dirty environment?
Answer by: Customer Support on Feb 28, 2026, 6:19 AM
Ductile iron is what you're working with here, and it comes finished with Dura-Kote plating. That coating is specifically built to handle corrosion, so moisture and contamination exposure are what it's made for. It's a solid choice for industrial hydraulic setups where the conditions aren't exactly clean or dry.
