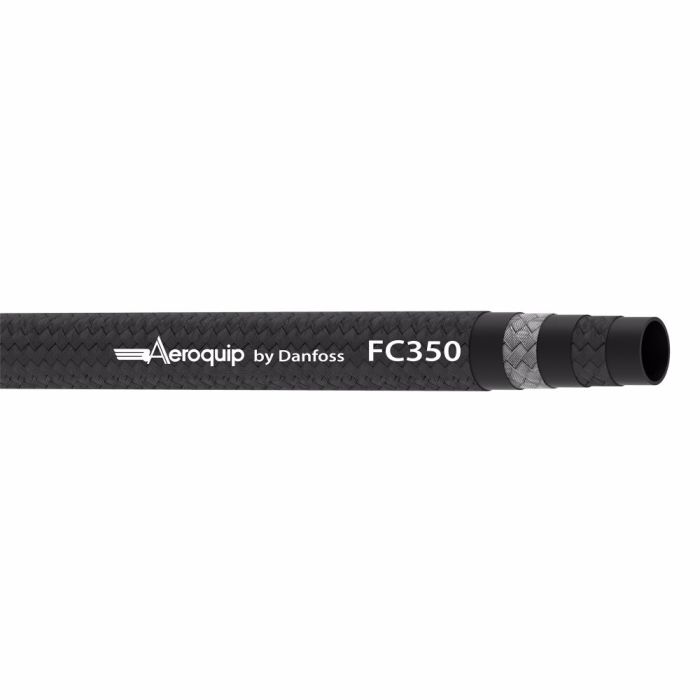

Aeroquip Hose And Coil - Code

Description & Features

Engineered for versatility and durability, the Aeroquip Hose And Coil - Code is ideal for transporting air, gasoline, fuel, lubricating oils, and coolants. Featuring a premium abrasion-resistant cover made from polyester, this hose ensures longevity in demanding environments. Its robust construction includes a 2-ply braid reinforcement of polyester and wire, providing proven reliability and high temperature resistance. The conductive design enhances safety, while its compliance with standards such as USCG, DOT FMVSS 106 Type AII, and DNV underscores its quality and performance.

With a minimum bend radius of 4.5 inches and a dash size of -20, this hose offers flexibility and ease of installation. Its qualified hose fittings are compatible with 100R5 reusable fittings, making it a practical choice for various industrial applications. The hose's chlorinated polyethylene tube material and ink wheel lay line style further contribute to its robust performance. Certified to ABS and SAE J1402 standards, this Aeroquip product is a reliable solution for a range of industrial needs.

SKU: FC350-20RL

Supplier Part Number (MPN): FC350-20RL

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MINO-00015X10702	Application Air, gasoline, fuel, lubricating oils and coolants.	Certifications ABS\|SAE J1402	Color Black	Compliances USCG\|DOT FMVSS 106 Type AII\|DNV	Conductivity 30	Construction 2-ply braid	Cover Material Polyester	Dash Size -20	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Highly abrasion resistant cover\|Small number of hoses for many fuel options\|Proven reliability with high temperature resistance	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Wheel	Minimum Bend Radius 4.50	Minimum Bend Radius 4.5	Minimum Working Temperature -55	Product Width 1.53	Qualified Hose Fittings 100R5 Reusable	Reinforcement Material Polyester and Wire	Sub Brand Aeroquip	Supplier Part Number FC350-20RL	Tube Material Chlorinated Polyethylene	Product Weight 1.26 lbs

Product Questions & Answers (1)

Question by: Hank W on Feb 2, 2026, 9:41 PM

Hey, can this hose handle gasoline without falling apart?

Answer by: Customer Support on Feb 4, 2026, 1:17 PM

Engineered to transport gasoline safely and reliably, this Aeroquip hose is also suitable for air, fuel, lubricating oils, and coolants.
