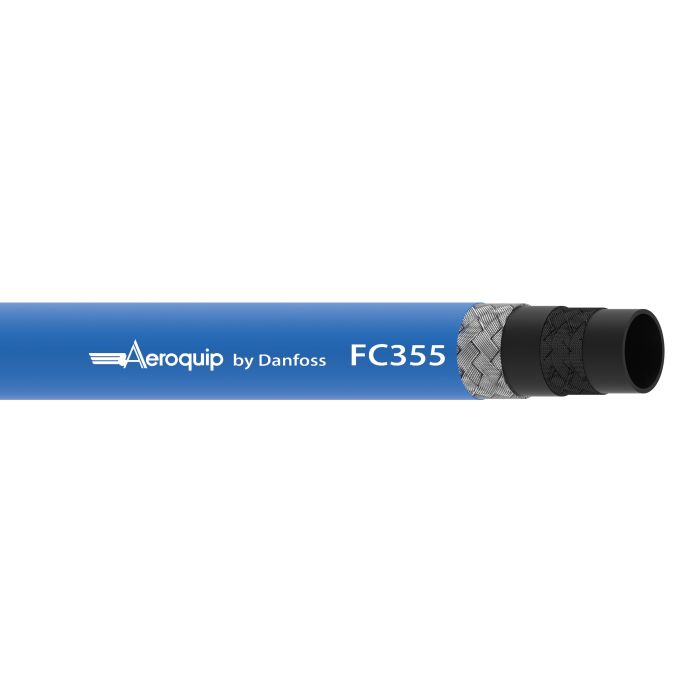

Aeroquip Hose SAE R5

Description & Features

Designed for use with air, gasoline, fuel, lubricating oils, and coolants, this Aeroquip Hose SAE R5 features a highly abrasion resistant elastomer cover, proven reliability and high temperature resistance. This hose is constructed with a conductive AQP inner tube, and a 2-ply braid of polyester and wire reinforcement.

The Aeroquip Hose SAE R5 meets DOT FMVSS 106 Type AII and SAE J1402 standards. It is blue with ink jet lay line style and has a -6 dash size with a 1.25 minimum bend radius and minimum working temperature of -40.

SKU: FC355-06RL

Supplier Part Number (MPN): FC355-06RL

Specifications

Abrasion Resistance Standard	Conditional Temp Range Air Not to Exceed 250 deg F	Cover Material Chlorinated Polyethylene	Dash Size 06	For Use With 100R5 Reusable Hose Fittings	Hose Color Blue	Hose Type Conductive Engine and Air Brake	Inside Diameter 0.31 in	Lay Line Style Inkjet	Nominal Size 3/8 in	Package Form Reel	Reinforcement 2-Wire Braided Brass-Plated Steel Wire	Resistance Abrasion	Resistance Properties Abrasion	Series FC355 Series	Tube Material Chlorinated Polyethylene

Product Questions & Answers (1)

Question by: Hubert R on Aug 5, 2025, 9:43 PM

Can this Aeroquip hose handle regular gasoline without breaking down?

Answer by: Customer Support on Aug 7, 2025, 7:44 AM

Designed for use with gasoline, fuel, lubricating oils, and coolants, this hose should work well for your application. It's built with a AQP inner tube.
