Description & Features

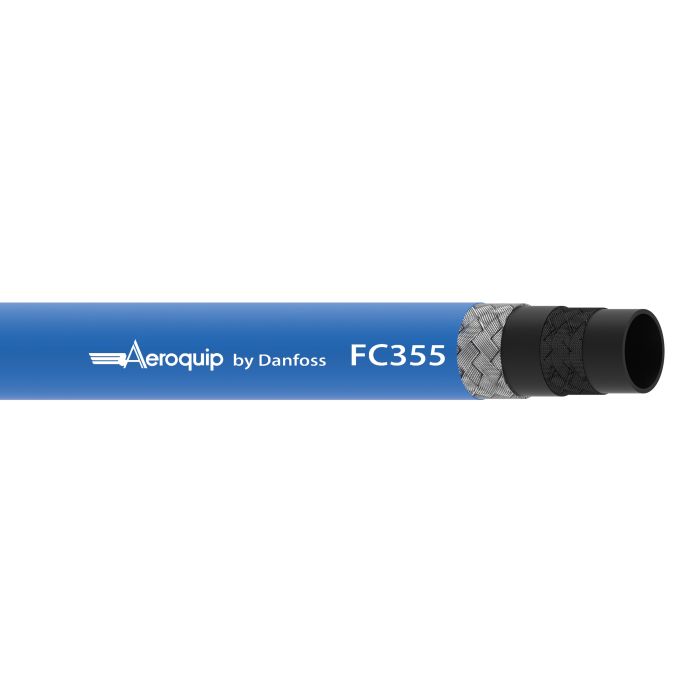

The Eaton Aeroquip FC355 Series hose is suitable for air, gasoline, fuel, lubricating oils, and coolant applications. Constructed with a 2-ply braid and an AQP inner tube, this conductive blue hose features a highly abrasion resistant elastomer cover for durability.

This Aeroquip hose meets DOT FMVSS 106 Type AII and SAE J1402 certifications and ABS compliances, offering proven reliability with high temperature resistance. Compatible with 100R5 Reusable qualified hose fittings, its minimum bend radius is 1.75 inches, and it withstands temperatures as low as -40 degrees. The reinforcement material consists of polyester and wire.

SKU: FC355-08

Supplier Part Number (MPN): FC355-08

Specifications

Abrasion Resistance Standard	Conditional Temp Range Air Not to Exceed 250 deg F	Cover Material Chlorinated Polyethylene	Dash Size 08	For Use With 100R5 Reusable Hose Fittings	Hose Color Blue	Hose Type Conductive Engine and Air Brake	Inside Diameter 0.41 in	Lay Line Style Inkjet	Nominal Size 1/2 in	Package Form Bulk	Reinforcement 1-Wire Braided Brass-Plated Steel Wire	Resistance Abrasion	Resistance Properties Abrasion	Series FC355 Series	Tube Material Chlorinated Polyethylene

Product Questions & Answers (3)

Question by: Shawn R on Oct 27, 2025, 9:24 AM

hose says it works for gasoline and fuel both, is that the same thing or does it cover different fuel types like diesel too?

Answer by: Customer Support on Oct 29, 2025, 6:03 AM

Fuel and gasoline are listed separately in the application spec, so the hose is rated to handle multiple fuel types under that umbrella, not just one. The FC355 is cleared for air, gasoline, fuel, lubricating oils, and coolants, so diesel and similar petroleum-based fuels fall within that range. The AQP inner tube is what makes that possible since it holds up against fuel contact without degrading the way standard rubber does.

Question by: Curt H on Jun 21, 2025, 5:18 PM

got a tight spot to route it, how sharp can this FC355-08 hose bend without kinking

Answer by: Customer Support on Jun 22, 2025, 9:30 PM

For routing, the published minimum bend radius is 1.75 inches. Staying at or above that bend radius helps keep the hose from being forced past its intended bend limit.

Question by: Keith A on Jun 30, 2025, 5:17 PM

Would this hose be alright for running gasoline in my old Ford?

Answer by: Customer Support on Jul 2, 2025, 4:26 PM

Yes, this Aeroquip hose is suitable for gasoline, along with air, fuel, lubricating oils, and coolants.
