Aeroquip Hose And Coil - Code

Description & Features

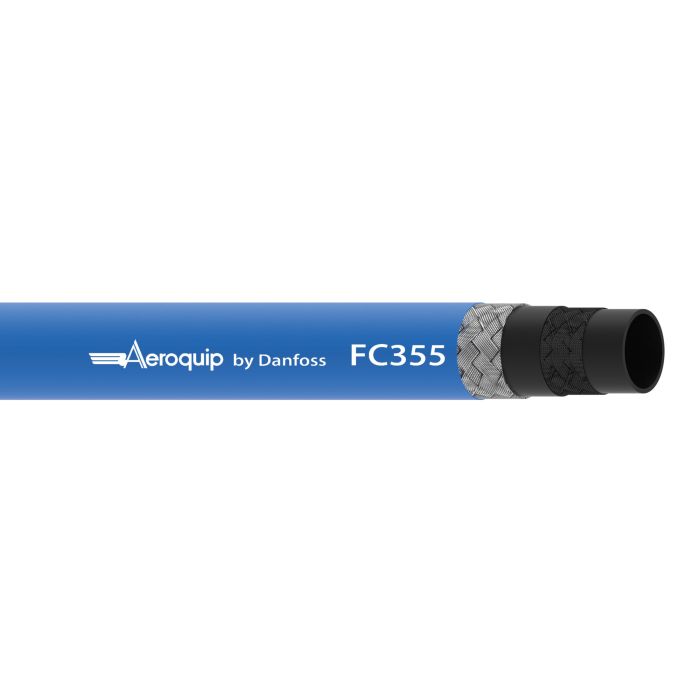

Designed for engine and fuel line use, the Aeroquip Hose And Coil - Code FC355 Series is built to handle air, gasoline, fuel, lubricating oils, and coolants across a wide operating temperature range starting at -40°F. The blue elastomer cover provides standard abrasion resistance, while the 2-ply polyester and wire braid reinforcement delivers consistent structural integrity under demanding conditions.

Constructed with an AQP inner tube and rated conductive, this hose meets DOT FMVSS 106 Type AII compliance and carries ABS and SAE J1402 certifications, making it well-suited for mobile and commercial vehicle fuel system applications. At dash size -32, it offers a minimum bend radius of 8.5 inches and is compatible with 100R5 reusable fittings. Lay line marking is applied via ink jet for clear identification in the field.

SKU: FC355-32

Supplier Part Number (MPN): FC355-32

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number MINO-00015F51462	Application Air, gasoline, fuel, lubricating oils and coolants.	Certifications ABS\|SAE J1402	Color Blue	Compliances DOT FMVSS 106 Type AII	Conductivity 30	Construction 2-ply braid	Cover Material Elastomer	Dash Size -32	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Highly abrasion resistant cover\|Small number of hoses for many fuel options\|Proven reliability with high temperature resistance	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 8.50	Minimum Bend Radius 8.5	Minimum Working Temperature -40	Product Width 2.22	Qualified Hose Fittings 100R5 Reusable	Reinforcement Material Polyester and Wire	Sub Brand Aeroquip	Supplier Part Number FC355-32	Tube Material AQP Inner tube	Product Weight 3.39 lbs

Product Questions & Answers (1)

Question by: Kent T on Apr 10, 2025, 8:19 PM

Will this Aeroquip hose hold up alright for running gasoline in my old pickup?

Answer by: Customer Support on Apr 11, 2025, 8:53 PM

Designed for use with gasoline, fuel, lubricating oils, air, and coolants, this Aeroquip hose should work well in your pickup's fuel system. It's also got that AQP inner tube and a blue elastomer cover for standard abrasion resistance, so it ought to last.
