Aeroquip Hose And Coil - Code

Description & Features

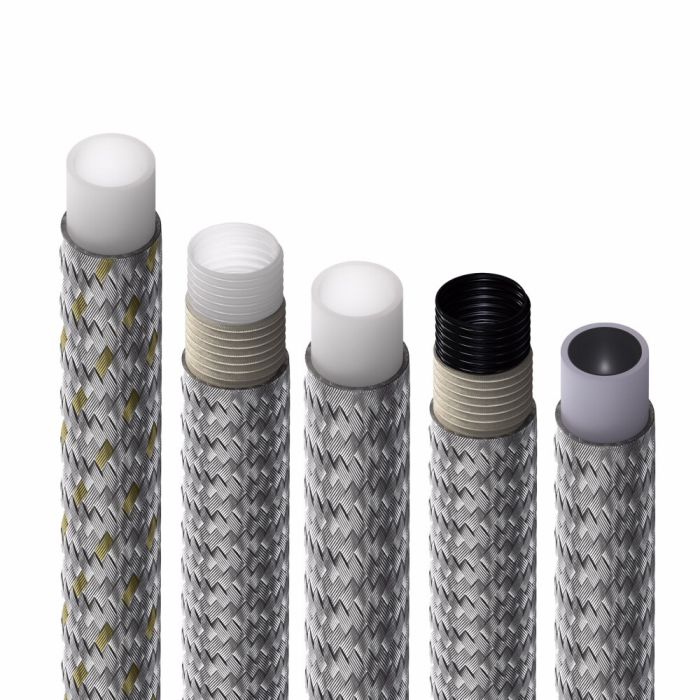

Constructed with a Teflon tube and a single-ply stainless steel braid reinforcement, this -6 dash size hose is built for demanding fluid transfer applications across a wide temperature range, rated down to -100°F. The Aeroquip Hose And Coil - Code FC465 Series carries FDA 21CFR178.3297 and SAE 100R14B certifications, making it suitable for steam lines, compressor discharge, and a broad range of chemical transfer applications.

The PTFE tube material is impervious to degradation from aggressive media, while the stainless steel braid provides conductive, premium abrasion resistance and the structural integrity needed to withstand vibration and pressure impulse cycles. Compatible with reusable crimp fittings, the hose has a minimum bend radius of 4 inches and a product width of 0.43 inches.

SKU: FC465-06

Supplier Part Number (MPN): FC465-06

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MINO-00015X91231	Application Steam, compressor discharge and most chemical applications.	Certifications FDA 21CFR178.3297\|SAE 100R14B	Color Stainless Steel	Conductivity 30	Construction 1 Ply Braid	Cover Material Stainless Steel	Dash Size -6	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Withstands vibration and impulsing\|Impervious to degradation\|Wide temperature range	ICC Hoses and Flexible Tubes	Language English	Minimum Bend Radius 4	Minimum Bend Radius 4	Minimum Working Temperature -100	Product Width 0.43	Qualified Hose Fittings Reusable Crimp	Reinforcement Material Stainless Steel	Sub Brand Aeroquip	Supplier Part Number FC465-06	Tube Material Teflon	Product Weight 0.92 lbs

Product Questions & Answers (1)

Question by: Harold B on Sep 23, 2025, 9:28 PM

Hey, reckon this hose would hold up okay for runnin' steam?

Answer by: Customer Support on Sep 25, 2025, 10:46 AM

Yes, this Aeroquip hose is suitable for steam lines thanks to its Teflon tube and stainless steel braid. It's also got FDA and SAE certifications for that kind of use.
