Aeroquip Hose And Coil

Description & Features

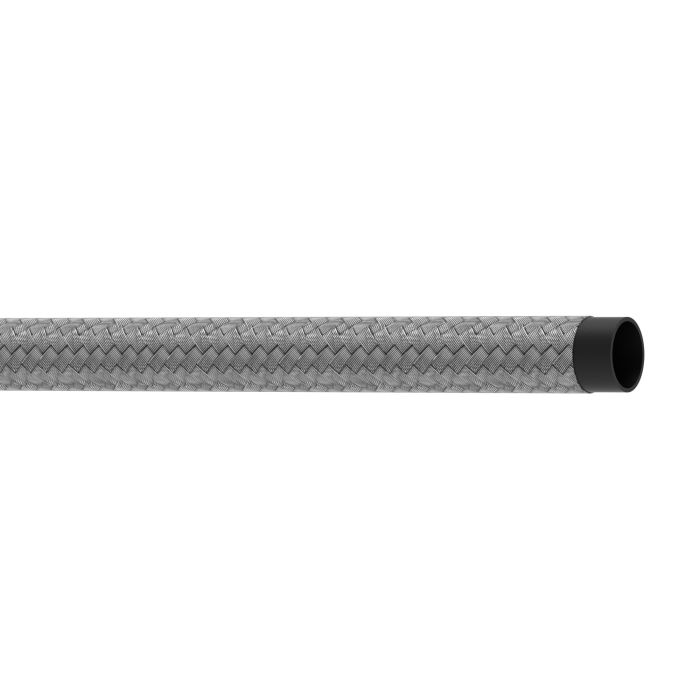

Designed for high pressure chemical and fluid transfer, this Dash -6 Aeroquip Hose and Coil features a Teflon inner tube with a single-ply stainless steel braid reinforcement and stainless steel outer cover. The conductive PTFE construction resists degradation from aggressive media while maintaining flexibility across a broad temperature range, with a minimum working temperature of -65°F and a minimum bend radius of 2.5 inches.

Built to withstand vibration and pressure impulse cycles, this hose is well suited to demanding hydraulic and chemical transfer environments where material compatibility and durability are critical. The ink transfer lay line style aids in installation alignment. For compatible fitting options, contact Danfoss / Eaton directly.

SKU: FC469-06

Supplier Part Number (MPN): FC469-06

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MINO-00015X21790	Application High pressure chemical and fluid transfer.	Color Stainless Steel	Conductivity 30	Construction 1 Ply Braid	Cover Material Stainless Steel	Dash Size -6	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Withstands vibration and impulsing\|Impervious to degradation\|Wide temperature range	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Transfer	Minimum Bend Radius 2.50	Minimum Bend Radius 2.5	Minimum Working Temperature -65	Product Width 0.48	Qualified Hose Fittings Contact Danfoss / Eaton for fitting information	Reinforcement Material Stainless Steel	Sub Brand Aeroquip	Supplier Part Number FC469-06	Tube Material Teflon	Product Weight 0.98 lbs

Product Questions & Answers (1)

Question by: Rick P on Apr 12, 2025, 6:58 AM

Reckon this hose will hold up to some pretty strong chemicals?

Answer by: Customer Support on Apr 13, 2025, 7:14 PM

Conductive PTFE construction resists degradation from aggressive media, so it should hold up well.
