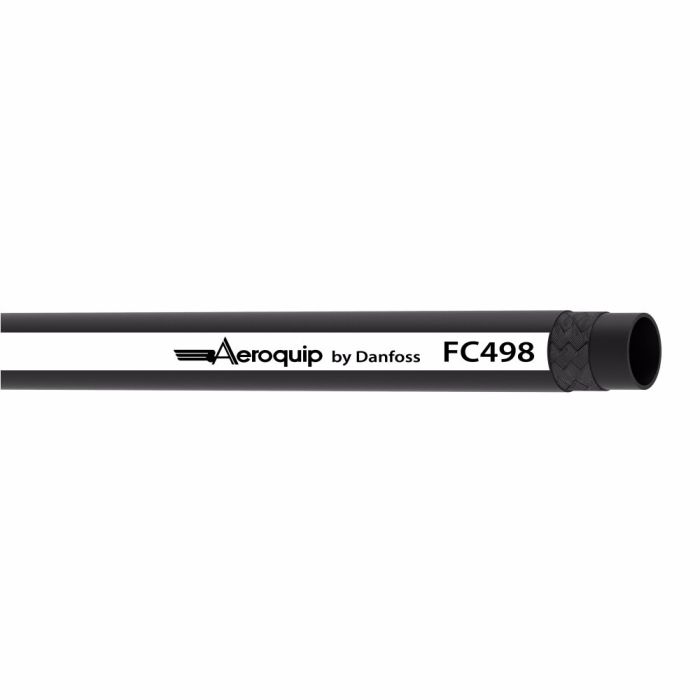

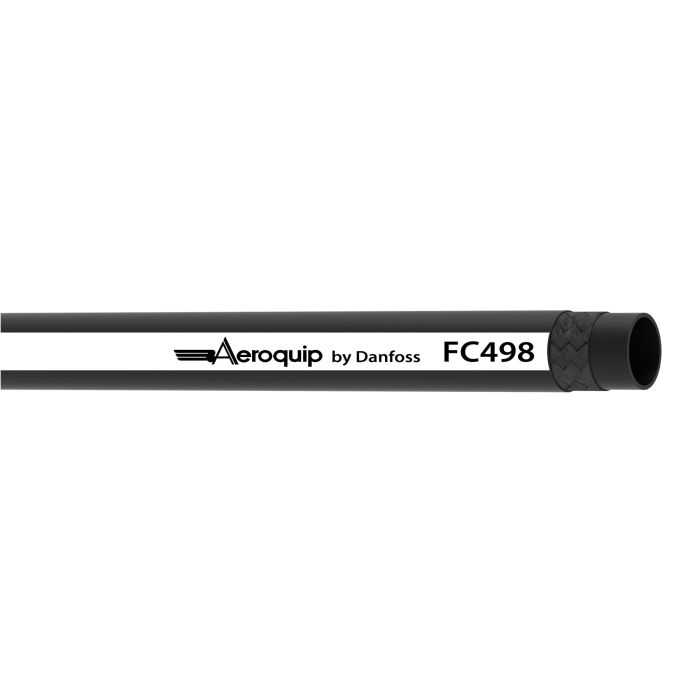

Aeroquip TEXTILE Braid Hose

Description & Features

Eaton Aeroquip TEXTILE Braid Hose is designed for low-pressure return lines within hydraulic systems. Constructed with a AQP inner tube and elastomer cover, this hose offers standard abrasion resistance and conductivity. The Aeroquip TEXTILE Braid Hose features a 1-ply braid reinforcement of polyester.

This blue hose is MSHA approved and meets EN854 Type R6 and SAE 100R6 certifications. It has a minimum bend radius of 4 inches and a minimum working temperature of -40 degrees.

SKU: FC498-08

Supplier Part Number (MPN): FC498-08

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number MINO-00015X00655	Application Low pressure return lines in hydraulic systems.	Certifications EN854 Type R6\|SAE 100R6	Color Blue	Compliances MSHA Approved	Conductivity 30	Construction 1 Ply Braid	Cover Material Elastomer	Dash Size -8	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Wheel	Minimum Bend Radius 4	Minimum Bend Radius 4	Minimum Working Temperature -40	Product Width 0.75	Reinforcement Material Polyester	Sub Brand Aeroquip	Supplier Part Number FC498-08	Tube Material AQP Inner tube	Product Weight 0.53 lbs

Product Questions & Answers (1)

Question by: Billy C on Feb 2, 2026, 6:24 PM

got a low-pressure return line on a hydraulic setup. is this Aeroquip textile braid hose meant for that kind of job?

Answer by: Customer Support on Feb 4, 2026, 5:30 PM

For low-pressure return lines in hydraulic systems, this hose is a good match. It is built with an AQP inner tube, a 1-ply polyester textile braid reinforcement, and an elastomer cover.
