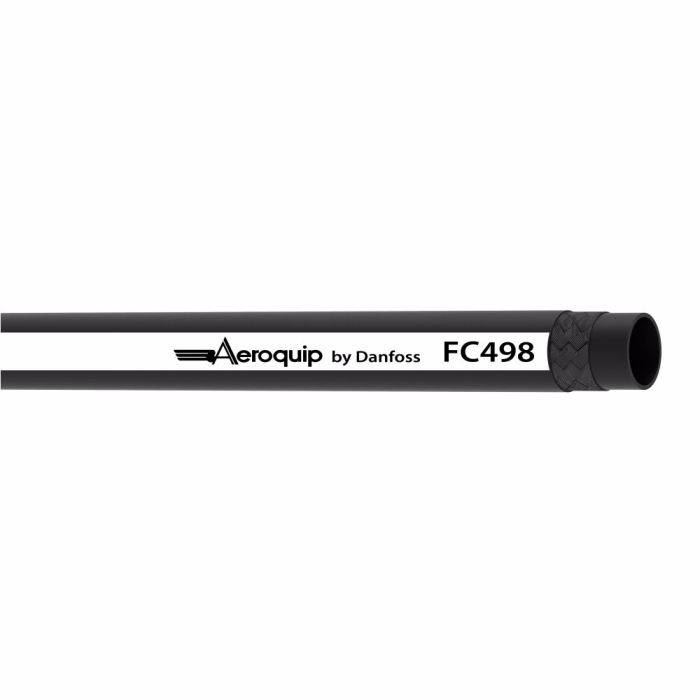

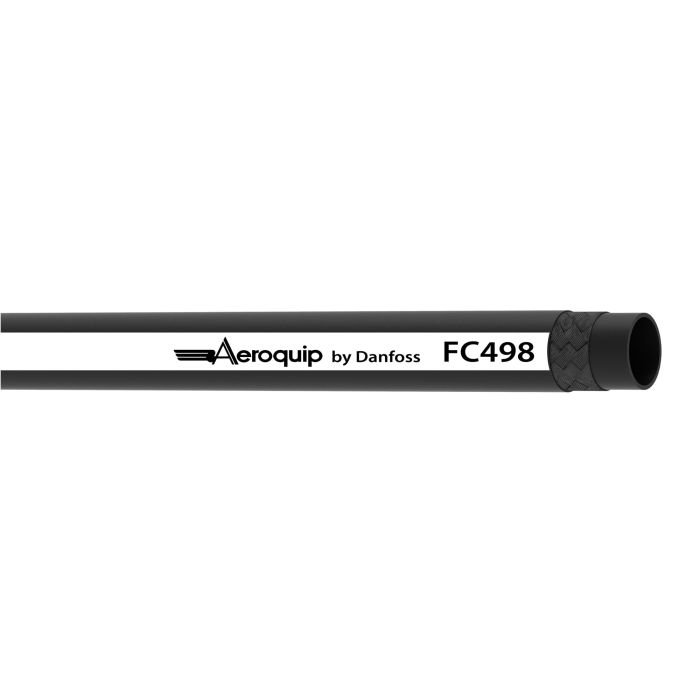

Aeroquip TEXTILE Braid Hose

Description & Features

Eaton Aeroquip TEXTILE Braid Hose, featuring a 1-ply braid construction, excels in low-pressure return lines within hydraulic systems. The blue elastomer cover offers standard abrasion resistance and conductivity, ensuring reliability in demanding environments.

This Aeroquip TEXTILE Braid Hose is constructed with an AQP inner tube and reinforced with polyester, providing maximum durability. It is MSHA approved and compliant with EN854 Type R6 and SAE 100R6 standards.

SKU: FC498-12

Supplier Part Number (MPN): FC498-12

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number MINO-00015X00652	Application Low pressure return lines in hydraulic systems.	Certifications EN854 Type R6\|SAE 100R6	Color Blue	Compliances MSHA Approved	Conductivity 30	Construction 1 Ply Braid	Cover Material Elastomer	Dash Size -12	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Wheel	Minimum Bend Radius 6	Minimum Bend Radius 6	Minimum Working Temperature -40	Product Width 1.03	Reinforcement Material Polyester	Sub Brand Aeroquip	Supplier Part Number FC498-12	Tube Material AQP Inner tube	Product Weight 0.38 lbs

Product Questions & Answers (3)

Question by: Steve L on Jul 27, 2025, 1:00 PM

got a low pressure return line on a hydraulic setup, is this Aeroquip textile braid hose the kind thats meant for that?

Answer by: Customer Support on Jul 28, 2025, 3:37 PM

For low pressure return lines in hydraulic systems, this hose is a match. It is built as a 1 ply textile braid hose with an AQP inner tube and polyester reinforcement, which fits that return line role.

Question by: Debbie J on Mar 30, 2026, 11:02 AM

what's the minimum bend radius on this hose, and does that -12 dash size mean it'll work on a 3/4 inch return line fitting?

Answer by: Customer Support on Apr 1, 2026, 7:53 AM

At dash size -12, you're looking at a 3/4 inch nominal size, so yes, that lines up with standard 3/4 inch return line fittings. The minimum bend radius on this hose is 6 inches, so you'll want to make sure your routing has enough clearance to avoid kinking it tighter than that. Keeps the hose life where it needs to be and protects the braid construction over time.

Question by: Terry G on Jan 28, 2026, 9:17 PM

What kind of pressures can this hose handle, generally speaking?

Answer by: Customer Support on Jan 30, 2026, 8:21 AM

This Aeroquip textile braid hose is really meant for lower pressure return lines in hydraulic systems. It's not designed for the high-pressure stuff.
