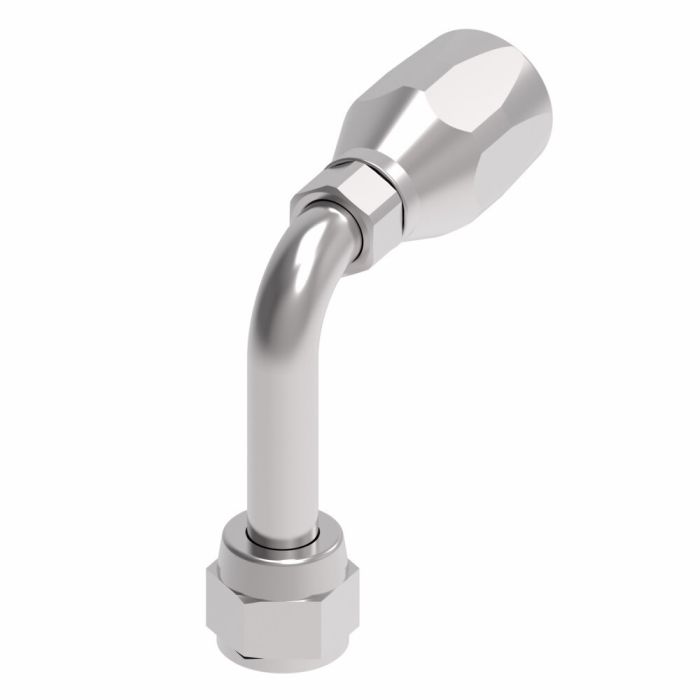

Aeroquip Reuse FIT FEM JIC SWV

Ask A Question

Description & Features

This Aeroquip Reuse FIT FEM JIC SWV fitting assembly is suitable for a wide range of applications. It features a female SAE 37° JIC swivel on one end and a line/hose/tube connection on the other.

Constructed of carbon steel, this fitting offers durability and dependable performance. It is designed to cut assembly times and boost production. The female end has a size of 0.75 inch, while the line/hose/tube end measures 0.5 inch.

SKU: FC5142-0808S

Supplier Part Number (MPN): FC5142-0808S

Specifications

Brand
Aeroquip® by Danfoss
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
1-1/2 in
Dimension Standards
SAE J514
Dimensions
0.39 in ID x 3.15 in L
Drop Dimensions
2.43 in
End Gender 1
Female
End Size 1
3/4 in
End Size 2
1/2 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
FC310 and FC510 Series Hoses
Hose Dash Size
08
Inside Diameter
0.39 in
Material
Steel
Material Construction
Carbon Steel
Series
FC5142 Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16

Product Questions & Answers (1)

Question by: Marvin H on Oct 18, 2025, 3:05 PM
Reckon this would be alright for hooking up a hydraulic hose to a cylinder on my tractor? The cylinder's got a JIC fitting.
Answer by: Customer Support on Oct 19, 2025, 9:58 PM
This Aeroquip fitting assembly has a female SAE 37° JIC swivel end that should work well for that purpose, as long as the sizes match up. Be sure the 0.75-inch female end connects to your cylinder and the 0.5-inch line/hose/tube end fits your hose.
