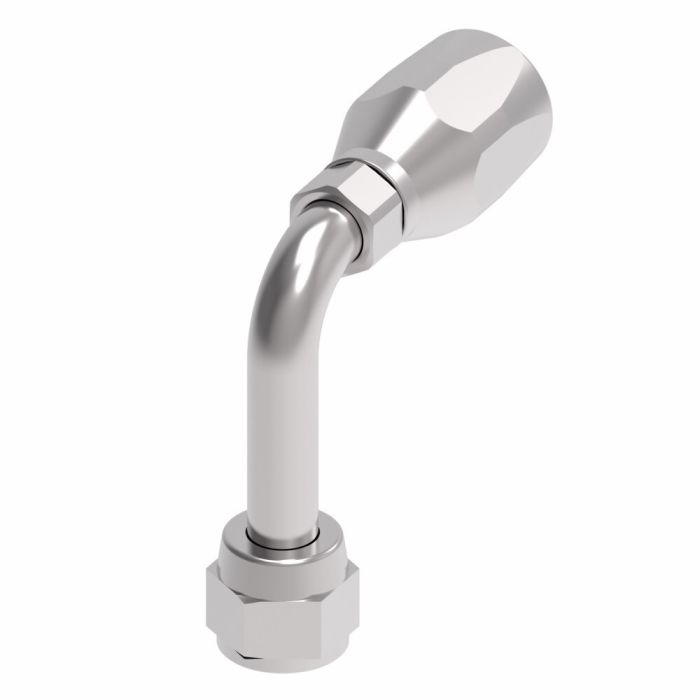

Constructed from carbon steel, this SAE 37° JIC swivel fitting delivers a 90° long elbow configuration suited to hydraulic hose assemblies requiring angled routing with a female swivel on one end. The hose end accepts -10 dash size hose, with a 0.875-inch female SAE 37° JIC swivel on the line side and a 0.625-inch hose end on the opposite end. A drop dimension of 2.57 inches and a product width of 1.18 inches provide useful reference points for clearance and installation planning.
The Aeroquip Reusable Ftgs - Code belongs to the Aeroquip FC5142 Series, designed for reusability to reduce assembly time and lower replacement costs in active production environments. The reusable design supports repeated field assembly without sacrificing connection integrity, making it a practical choice for maintenance-intensive hydraulic systems across a wide range of industrial applications.
SKU: FC5142-1010S
Supplier Part Number (MPN): FC5142-1010S
|
Alternate Part Numbers
MINO-00015X10802
|
Drop Dimension
2.57
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Size 1
0.88
|
End Size 2
0.63
|
End Type 1
SAE 37
|
End Type 2
Line/Hose/Tube
|
Features
Fit for wide range of applications|Durable and dependable|Cut assembly times and boost production
|
Hose Dash Size
-10
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Product Material
Carbon Steel
|
Product Width
1.18
|
Sub Brand
Aeroquip
|
Supplier Part Number
FC5142-1010S
|
Product Weight
0.60 lbs
|
