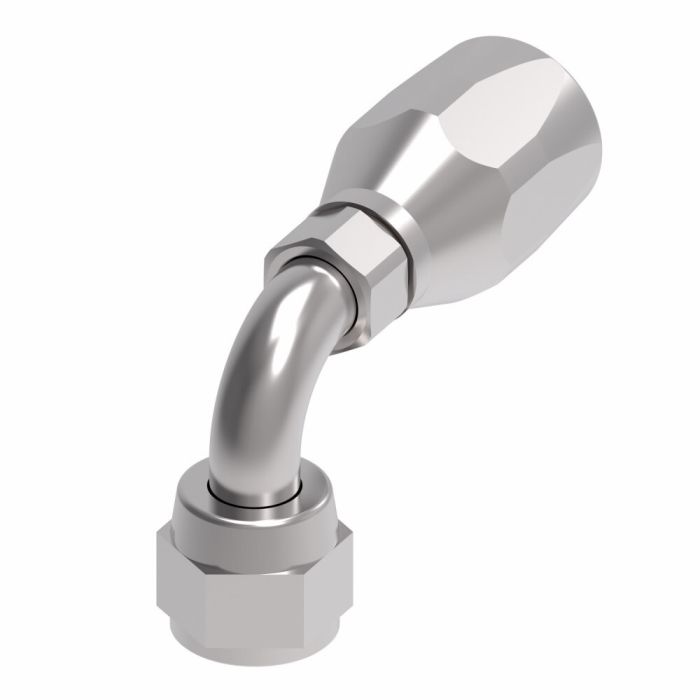

main product photo

Aeroquip Reuse FIT F JIC SWIV

Ask A Question

Description & Features

Designed for SAE 37° JIC swivel connections, this carbon steel fitting assembly from the Aeroquip FC5143 Series handles 3/4-inch female JIC connections on one end and line/hose/tube terminations on the other. The 90° short elbow configuration suits installations where space is limited and precise routing is needed. With a hose dash size of -8 and a drop dimension of 1.09 inches, it fits standard hydraulic hose assemblies used across a wide range of industrial applications.

As a reusable fitting, it supports efficient assembly and disassembly without sacrificing reliability, a practical choice for shops focused on reducing downtime and turnaround. Weighing 0.41 lb and measuring 0.88 inches in width, the Aeroquip Reuse Fit F JIC Swivel is a compact, field-proven component built for dependable performance in demanding hydraulic circuits.

SKU: FC5143-0808S

Supplier Part Number (MPN): FC5143-0808S

Specifications

Brand
Aeroquip® by Danfoss
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
1.38 in
Dimension Standards
SAE J514
Dimensions
0.39 in ID
Drop Dimensions
1.09 in
End Gender 1
Female
End Size 1
3/4 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
FC310 and FC510 Series Hoses
Hose Dash Size
08
Inside Diameter
0.39 in
Material
Steel
Material Construction
Carbon Steel
Series
FC5143 Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16

Product Questions & Answers (1)

Question by: Carl R on Nov 19, 2025, 6:55 PM
What size JIC connection does this fit?
Answer by: Customer Support on Nov 21, 2025, 6:58 AM
It's made for a 3/4-inch female JIC connection.
